Product Number: 54409
Variations

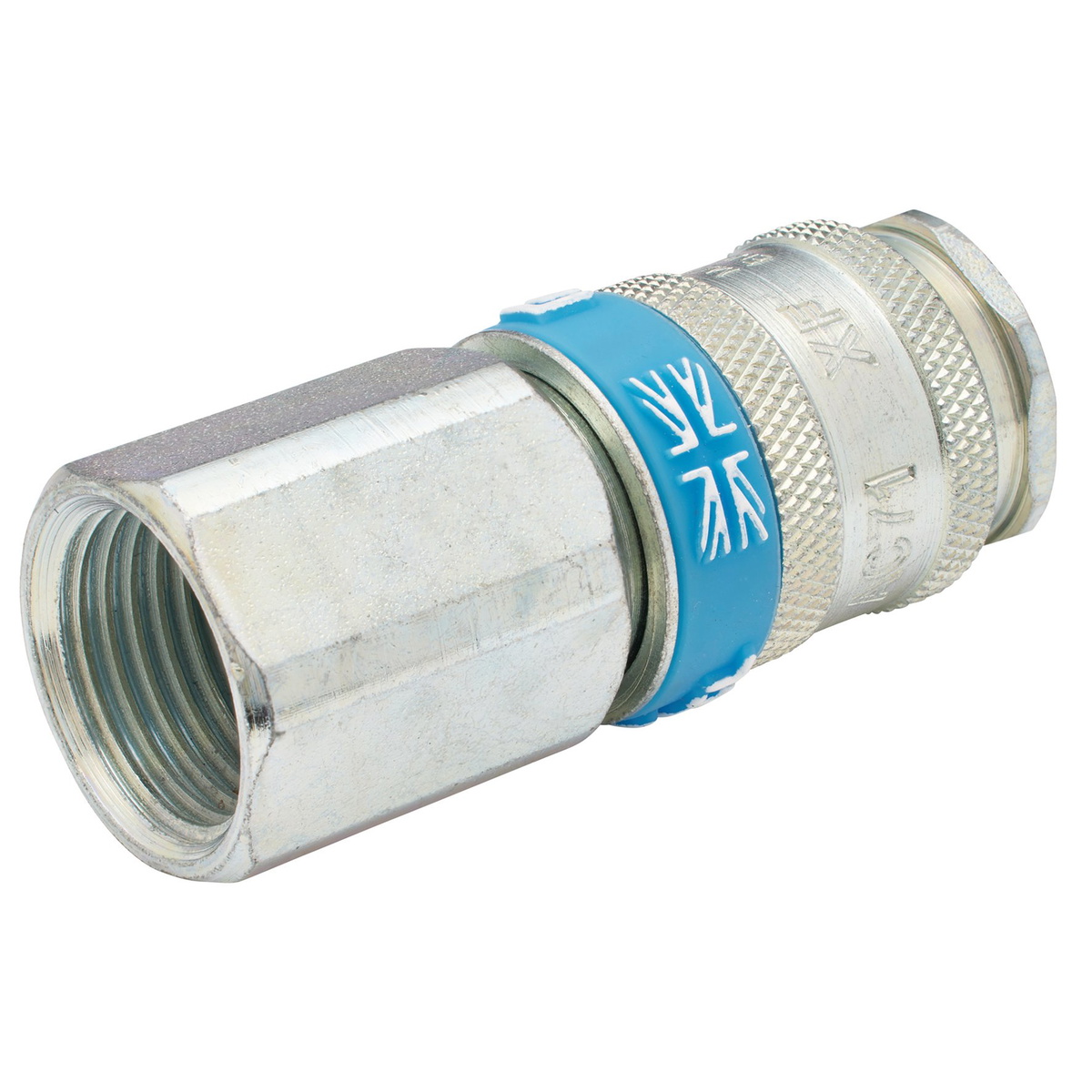

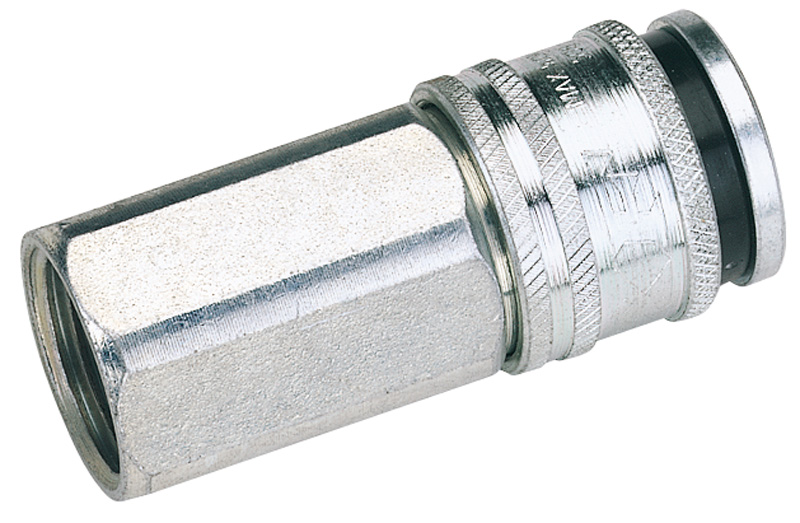

Compressed air systems operating at high flow rates demand couplings that can withstand sustained industrial use without degradation in performance or pressure integrity. The Draper 54409 1/2" BSP Parallel Euro Coupling Female Thread is engineered specifically for heavy duty, high flow applications, providing a reliable connection point within pneumatic circuits where consistent airflow is critical. The coupling features BSP parallel thread form and has been tested to over 1 million cycles, confirming its durability across demanding workshop and industrial environments. It connects to most popular industrial and European adaptor profiles, including Cejn and Rectus, making it broadly compatible within established pneumatic systems. The steel construction is zinc passivated to significantly improve corrosion resistance, extending service life in environments where moisture or contaminants are present. Key performance figures confirm its suitability for high demand applications: flow capacity is rated at 78 cfm (2,200 L/min) at 6 bar inlet with a 0.5 bar pressure drop, and the nominal flow diameter is 7.4 mm. Maximum working pressure is 500 psi (35 bar), test pressure is 725 psi (50 bar), and maximum burst pressure is 2,030 psi (140 bar). The operating temperature range spans -40°C to 100°C. Supplied as a single unit (sold loose), this coupling is suited to professional workshops, manufacturing facilities, and industrial maintenance operations where a 1/2" BSP female thread euro coupling is required.
For heavy duty high flow applications, BSP parallel, tested to over 1 million cycles, connects to most popular and European adaptor profiles (Cejn, Rectus etc.), zinc passivated to significantly improve corrosion resistance, hard wearing steel construction. Sold loose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| 0.5bar Pressure Drop | 78cfm (2200L/min) |
|---|---|
| Max Burst Pressure | 2030psi (140bar) |
| Max Working Pressure | 500psi (35bar) |
| Nominal Flow Diameter | 7.4mm |
| Temperature Range | -40 to 100°C |
| Test Pressure | 725psi (50bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AC33CF/ETCHED | AC71CM | AC21CM05K | ACH13 | AC71JF/S |
| Type | Coupling | Coupling | Coupling | Coupling | Coupling |
| Drive | 1/4" | ||||
| Family | PCL | PCL XF-Euro | PCL Airflow | PCL XF-Euro | |
| Thread | 1/4" | 1/4" | 1/4" | 1/4" | 1/2" |
A. The Draper 54409 is rated at a flow capacity of 78 cfm (2,200 L/min) at 6 bar inlet pressure with a 0.5 bar pressure drop, making it suitable for heavy duty, high flow pneumatic applications.
A. The maximum working pressure is 500 psi (35 bar). The coupling has a test pressure of 725 psi (50 bar) and a maximum burst pressure of 2,030 psi (140 bar).
A. The coupling connects to most popular industrial and European adaptor profiles, including Cejn and Rectus, making it suitable for integration into widely used pneumatic systems.
A. The Draper 54409 is rated for an operating temperature range of -40°C to 100°C.
A. The nominal flow diameter is 7.4 mm.
A. The coupling features a zinc passivated finish, which is applied to significantly improve corrosion resistance and extend service life in workshop and industrial environments.
A. The coupling has been tested to over 1 million cycles, confirming its durability for sustained industrial use.
