Product Number: TP3520W10*-60
Variations
Compact and purposefully specified for lighter installations, the TP3520W10*-60 is a rubber-to-metal bonded two-piece anti-vibration mount in 60 Shore A medium hardness, suited to the broad middle ground of machinery mounting where a working balance of vibration isolation and structural support is required. At a 9 mm height (dimension A) and 22.6 mm diameter (dimension B), this is a smaller-footprint mount sized for lighter, compact or sensitive installations, with an M10 fixing thread and a maximum rated load of 84 kg. The rubber-to-metal bonded construction is central to this mount's performance. At 60 Shore A, the rubber element sits at neither extreme of the hardness range: it provides sufficient deflection to attenuate vibration effectively at lighter loads whilst maintaining enough stiffness to support the equipment and limit excessive movement under operational conditions. This makes it appropriate across many general-purpose applications where neither maximum isolation nor maximum load resistance is the priority. The mounting can be loaded in shear, compression, or a combination of both. The industries served by this mount family span construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. Within those sectors, the 60 Shore grade in this compact 9 mm form is particularly relevant where instruments, electronics, or light equipment require reliable vibration management without over-engineered, high-load hardware. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for specialist environments, as are additional and custom sizes.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

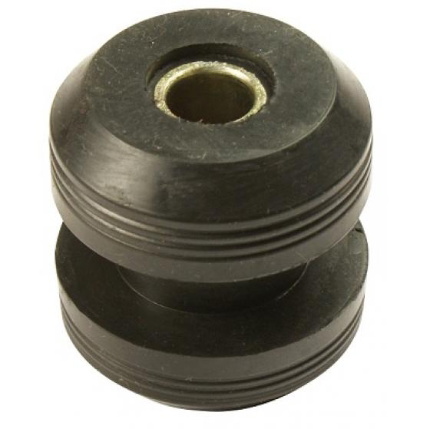

| PRODUCT NUMBER | TP3520W10*-45 | RE1/8.5/3.2-3.5 | TP3520-45 | TP3520-60 | TP3025-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 9mm | 8.5mm | 7.5mm | 7.5mm | 12.3mm |
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | 11-25mm |
A. The principal dimensions are: A (height) 9 mm, B (diameter) 22.6 mm, C 6.5 mm, D 3.5 mm, E 9 mm, F 10.2 mm, G 35 mm, and R 2 mm. The thread is M10. Tmax and Tmin are each 4 mm.
A. The TP3520W10*-60 has a maximum rated load of 84 kg.
A. At 60 Shore A, this mount occupies the medium hardness band. It provides a working balance between vibration isolation and load-bearing support — offering more deflection and isolation than a harder grade, whilst maintaining sufficient stiffness for general-purpose machinery mounting across a broad range of lighter and compact installations.
A. The TP3520W10*-60 can be loaded in shear, compression, or a combination of both, giving installation flexibility across different mounting orientations and equipment configurations.
A. The mount family is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. The compact 9 mm, 60 Shore grade is particularly appropriate for instruments, electronics, and light equipment requiring reliable vibration management.
A. Yes. The TP3520W10*-45 provides a softer 45 Shore A grade for greater deflection and improved isolation at lower loads. The broader range — TP2203, TP3025, TP3035, TP3520, TP4850, and TP9075 — covers a wide spread of sizes and load ratings.
A. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes. Contact PartsForMachines to discuss specialist requirements.
