FREQUENTLY BOUGHT TOGETHER

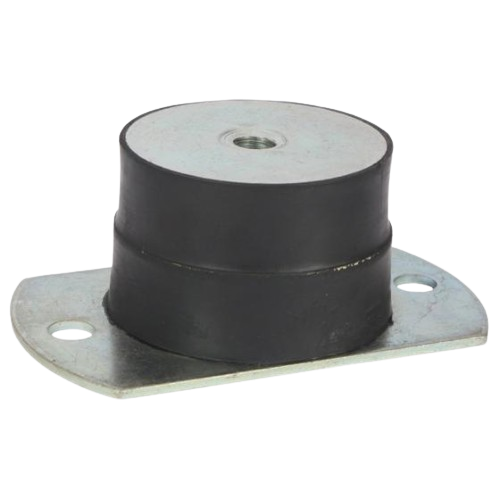

Rubber Mount - Flanged Circular Mount Range, Thread Size M12, Max Load 400Kg - FCM3-60
Add
Sealey SN12 Steel Nut DIN 934 M12 Zinc Pack of 25
Add
Sealey FWA1224 Flat Washer M12 x 24mm DIN 125 Form A Zinc Pack of 100
Total Price: £57.51 ADD ALL three TO CART
Compare with Similar products
Technical Specification
PRODUCT NUMBER 10025PRB1310030PRB3312525PRB1710254TRB3212246TRB38
Type Anti-Vibration MountAnti-Vibration MountAnti-Vibration MountAnti-Vibration MountAnti-Vibration Mount
Size 100mm100mm125mm102mm122mm
Size Range 51-100mm51-100mm101-200mm101-200mm101-200mm

Q 1. What is the load capacity and deflection of the FCM3?

A. The FCM3 is rated to a 60° load of 400 kg with a shore deflection of 5 mm.

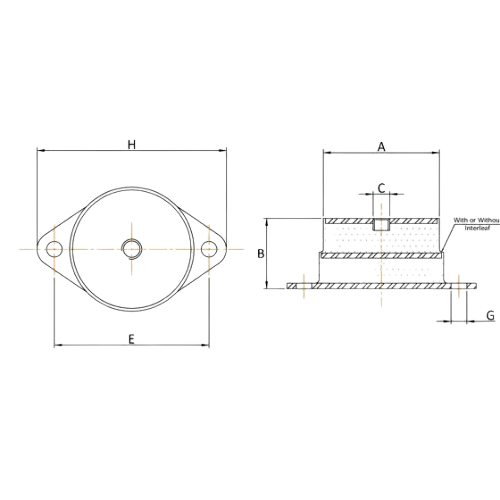

Q 2. What are the key dimensions of the FCM3 flanged circular mount?

A. The FCM3 has a diameter (A) of 81 mm, B of 50 mm, E of 112 mm, G of 12.5 mm, H of 140 mm, and an S value of 3 mm. The threaded stud is M12.

Q 3. In which loading directions can the FCM3 be used?

A. The FCM3 may be loaded in shear, compression, or a combination of both, depending on the requirements of the installation.

Q 4. What industries and applications is the FCM3 suited to?

A. The FCM3 is suited to power generation, marine, agricultural machinery, railway and mass transit, construction and off-highway, automotive, and military and defence applications where mid-range load isolation is required.

Q 5. What are the benefits of rubber-to-metal bonded construction in the FCM3?

A. Rubber-to-metal bonded construction improves machinery lifespan, protects surrounding structures, and improves operator comfort by attenuating vibration at the source.

Q 6. Are custom materials or non-standard sizes available for the FCM3 range?

A. Yes — stainless steel metalwork, oil-resistant rubber, high-temperature rubber compounds, and additional or custom sizes are all available on request.

Q 7. What other sizes are available in the flanged circular mount range?

A. Smaller variants include FCM2 and FCM2I; an insulated version of this mount size is FCM3I. Larger high-capacity options include FCM5, FCM5I, and FCM763812.
