Product Number: 10254TRB32

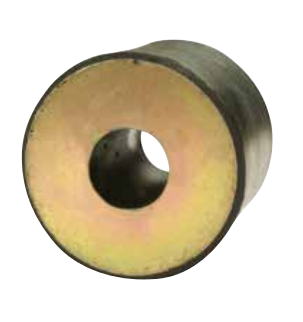

At the top of the ring element range, the 10254TRB32 is the largest geometry in the family, engineered to carry a maximum load of 1,619 kg, making it the appropriate choice wherever high-load vibration isolation is the governing requirement. With outer diameter D1 of 102 mm, secondary diameter D2 of 100 mm, bore diameter d of 32 mm and a height H of 54 mm, this rubber-to-metal bonded ring element delivers controlled deflection across the full extent of its load band. Rubber-to-metal bonded construction provides the structural integrity needed to sustain heavy operational loads whilst absorbing vibration energy in shear, compression or a combination of both axes. This dual-mode loading capability means the element can be oriented to suit the dominant force direction in the application, without a change of part. The ring element family is well established across power generation plant, marine installations, railway and mass transit equipment, construction and off-highway machinery, agricultural equipment, automotive assemblies, and military and defence platforms. At this size and load rating, the 10254TRB32 is particularly suited to anchoring substantial power units, generator sets, and heavy industrial machinery where structural isolation and protection of surrounding equipment are primary objectives. Correct mounting at this load scale also contributes to extended machinery lifespan and improved operator comfort. Custom variants in stainless steel hardware and oil-resistant or high-temperature rubbers are available on request. This SKU is the largest in the ring element range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Diameter / thread d1 (mm) | 102 |
|---|---|
| Diameter / thread d2 (mm) | 100 |
| Fixing thread / bolt size d | 32 |
| Overall height H (mm) | 54 |
| Max load (kg) | 1619 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10025PRB13 | 10030PRB33 | RE10027 | RE11015 | RE11020 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 100mm | 100mm | 100mm | 110mm | 110mm |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 101-200mm | 101-200mm |
A. The 10254TRB32 has an outer diameter D1 of 102 mm, a secondary diameter D2 of 100 mm, a bore diameter d of 32 mm, and a height H of 54 mm.
A. The 10254TRB32 is rated to a maximum load of 1,619 kg, placing it at the top of the ring element range.
A. The rubber-to-metal bonded construction allows the element to be loaded in shear, compression, or a combination of both, providing flexibility in mounting orientation to suit the dominant force direction in the application.
A. The ring element family serves power generation, marine, railway and mass transit, construction and off-highway, agriculture, automotive, and military and defence applications. At this load rating, the 10254TRB32 is particularly suited to heavy power units, generator sets, and large industrial machinery.
A. Yes — stainless steel hardware and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. Smaller ring elements in the range include 12246TRB38, 8240TRB25, 7233TRB21, 6233TRB21, 4223TRB18, RE10027, RE11015, and RE11020.
