Product Number: 8020PRB13
Variations

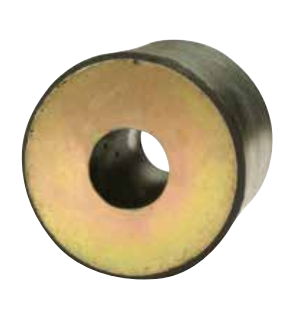

Compact yet capable, this 80mm ring element (8020PRB13) is a rubber-to-metal bonded anti-vibration mount engineered for lighter, sensitive installations where controlled deflection and effective vibration isolation take priority over high load capacity. Sitting at the lower end of the ring element range, it is well suited to instruments, electronics, and light equipment where protecting delicate components from vibration damage is the primary concern. The rubber-to-metal bonded construction provides a secure, durable interface between rubber and metal, allowing the mount to absorb vibration energy in shear, compression, or a combination of both loading modes. Softer rubber grades within this family deliver greater deflection and improved isolation performance at lower load, making ring elements of this size particularly appropriate for sensitive items that cannot tolerate transmitted vibration from surrounding machinery or structures. With an outer diameter of 80 mm, height of 20 mm, outer bore of 32 mm, inner bore of 13 mm, and a stiffness factor (S) of 4, this mount occupies a defined compact position in the range. Industries served by this ring element family include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubbers. Are available on request for specialist requirements. This mount is available in a range of configurations and sizes. Sibling variants include 10254TRB32, 12246TRB38, 4223TRB18, 6233TRB21, 7233TRB21, 8240TRB25, RE10027, and RE11015. Select the variant that matches your dimensional and load requirements.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer diameter D (mm) | 80 |
|---|---|
| Overall height H (mm) | 20 |
| Diameter / thread d1 (mm) | 32 |
| Diameter / thread d2 (mm) | 13 |
| Plate / metal thickness S (mm) | 4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

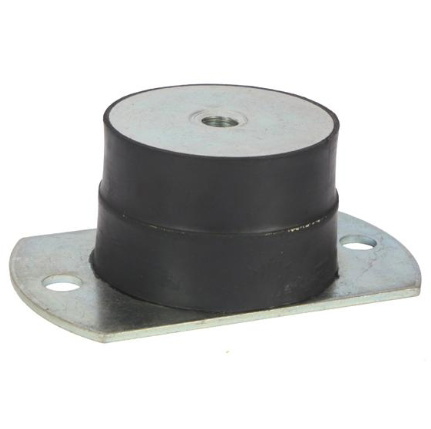

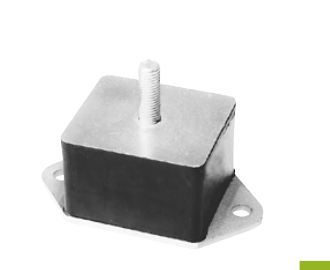

| PRODUCT NUMBER | SL60 | FCM3 | FCM3I | 8240TRB25 | FCM2 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 80mm | 81mm | 81mm | 82mm | 76mm |
| Deflection | 5 | 5 | 5 | ||
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M12 | M12 | M12 | M12 | |
A. The 8020PRB13 has an outer diameter (D) of 80 mm, a height (H) of 20 mm, an outer bore (d1) of 32 mm, an inner bore (d2) of 13 mm, and a stiffness factor (S) of 4.
A. This ring element is designed as a lightweight, low-load mount for instruments, electronics, and light equipment, providing vibration isolation for sensitive items where minimising transmitted vibration is the primary objective.
A. Within this ring element family, softer grades deliver greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement. The appropriate grade depends on the load and isolation requirements of your specific installation.
A. This mount may be loaded in shear, compression, or a combination of both, depending on the requirements of the installation.
A. The ring element family is used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence industries.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
A. Yes — sibling variants include 10254TRB32, 12246TRB38, 4223TRB18, 6233TRB21, 7233TRB21, 8240TRB25, RE10027, and RE11015. Select the configuration that matches your dimensional and load requirements.
