Product Number: FM25-40

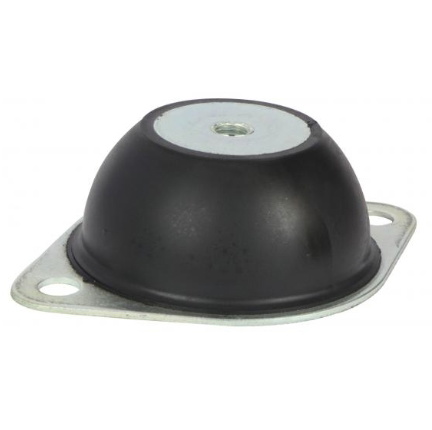

Soft rubber flexibility defines the FM25-40 flanged mount, a 40 Shore A anti-vibration mounting built to give maximum isolation performance for lighter loads and sensitive equipment installations. With a maximum load rating of 20.0 kg and a generous deflection of 4.5 mm, this mount sits at the lower end of the flanged range, where absorbing low-frequency vibration matters more than load restraint. Constructed with rubber-to-metal bonded technology, the FM25-40 features a two-hole fixing arrangement with M8/M10 thread compatibility. The flanged form allows secure attachment across a spread of 85 mm (dimension E), with the rubber element spanning 33 mm (A) by 25 mm (B). The slot dimension of 8 x 12 mm (G) and face depth of 2 mm (F) suit compact installations where precise fitting is essential. The overall mounting depth falls within a 66–73 mm range (D), accommodating minor variations in installation geometry. The 40 Shore A hardness grade is specifically suited to instrument mountings, electronics, and light equipment where softer rubber gives greater deflection and better isolation at lower load. Applications span construction and off-highway machinery, agricultural equipment, power generation, marine installations, railway and mass transit, automotive, and military and defence platforms, particularly where protecting sensitive components from vibration-induced fatigue is the priority. Mounts may be loaded in shear, compression, or a combination of both. This mount is part of a wider flanged mounting family.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM100-60 | FM100260 | FM10028-45 | FM10028-60 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 68mm | 100mm | 100mm | ||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | 51-100mm | 51-100mm | ||
| Thread | M6 | M10 | M10 | M10 | M10 |
A. The FM25-40 has a maximum load rating of 20.0 kg and a deflection of 4.5 mm. The 40 Shore A soft rubber grade provides greater deflection under load, which delivers better vibration isolation performance at lower load levels compared with firmer grades.
A. This mount is designed for instruments, electronics, and light equipment where vibration isolation of sensitive items is the primary requirement. It is used across construction and off-highway, agricultural, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. The mount has a rubber element diameter (A) of 33 mm and height (B) of 25 mm. Thread compatibility is M8/M10 (C). Overall depth (D) is 66–73 mm. The flange spread (E) is 85 mm, face depth (F) is 2 mm, slot size (G) is 8 x 12 mm, and there are 2 fixing holes.
A. The FM25-40 may be loaded in shear, compression, or a combination of both, depending on the installation requirements.
A. Softer rubber grades such as 40 Shore A give greater deflection and better isolation at lower load. If your application involves lighter or compact equipment and lower-frequency vibration, the 40 Shore A grade is the appropriate choice. Firmer grades — 60 Shore A (FM25-60) and 75 Shore A (FM25-75) — carry higher loads with less movement and suit different installation requirements.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Alongside the FM25-40, the family includes FM25-60, FM25-75, FM007, FM100, FM1500, FM1566, FM200, and FM209, covering a range of load capacities, Shore hardness grades, and physical sizes.
