Product Number: FM209-40

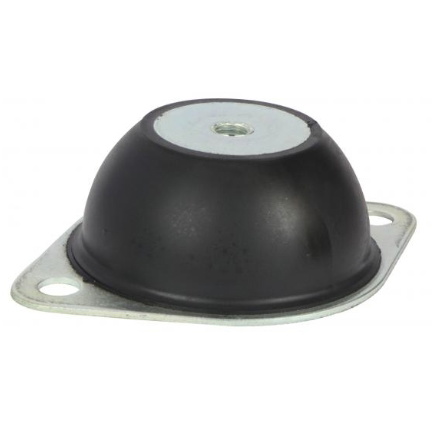

Where isolation takes priority over restraint, the FM209-40 flanged anti-vibration mount delivers maximum vibration attenuation for lighter and sensitive installations. Rated to 40 Shore A, the softest grade in the FM209 series. This mount offers a maximum load capacity of 40.0 kg and a deflection of 3.0 mm, characteristics that make it well suited to applications where low-frequency isolation and movement under load are the primary engineering requirements rather than stiffness or high-load bearing. Constructed using rubber-to-metal bonding, the FM209-40 integrates a flanged body measuring 60 mm (D) by 77 mm (E), with a 31 mm face dimension (A) and a 21.5 mm height (B). Two fixing holes are provided, threaded at M8/M10 (C), and the mount profile includes a 3 mm flange depth (F) and a 9.2 mm internal dimension (G). This compact geometry is suited to constrained installation environments where a low-profile flanged mount is required. The softer 40 Shore A rubber compound produces greater deflection under load than harder grades, yielding superior isolation performance at the lower load and frequency ranges typical of instruments, electronics, and light machinery. In service, the FM209-40 is appropriate for industries including agriculture, power generation, marine, automotive, and construction and off-highway, wherever lightweight or sensitive equipment demands vibration isolation rather than rigid restraint. It may be loaded in shear, compression, or a combination of both. By absorbing and decoupling vibration at the source, the mount protects surrounding structures, improves operator comfort, and contributes to extended machinery lifespan.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM100-60 | FM100260 | FM10028-45 | FM10028-60 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 68mm | 100mm | 100mm | ||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | 51-100mm | 51-100mm | ||
| Thread | M6 | M10 | M10 | M10 | M10 |
A. The FM209-40 is rated to a maximum load of 40.0 kg with a deflection of 3.0 mm. The 40 Shore A rubber compound produces greater movement under load than harder grades, prioritising vibration isolation over stiffness.
A. The mount accepts M8 and M10 fixings (dimension C) via two fixing holes, offering installation flexibility across different equipment mounting configurations.
A. The principal dimensions are: A 31 mm, B 21.5 mm, D 60 mm, E 77 mm, F 3 mm, G 9.2 mm. Two fixing holes are provided. Always verify against your equipment drawing before ordering.
A. The FM209-40 is designed for instruments, electronics, and light machinery where vibration isolation is the primary requirement. Industries served include agriculture, power generation, marine, automotive, construction and off-highway, and railway and mass transit.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is oriented within an installation.
A. Yes. The FM209 range includes FM209-60 and FM209-75 for higher load or less deflection. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request.
