Product Number: FM1500-75
Variations

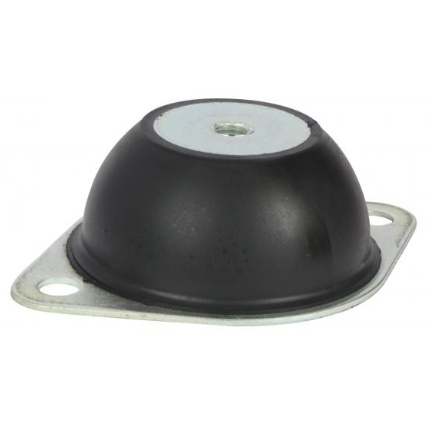

Where plant and machinery demands the firmest restraint under heavy shock and sustained high load, the FM1500-75 flanged anti-vibration mount is engineered to perform. Rated to a maximum load of 3,381 kg with a deflection of just 41.5 mm, this 75 Shore A rubber-to-metal bonded mount occupies the top of the FM1500 range, combining structural rigidity with controlled vibration attenuation for the most demanding duty cycles. At 75 Shore A, the rubber compound is formulated to minimise movement under load, making this mount the preferred choice where positional stability and shock resistance are the primary requirements rather than maximum isolation. The rubber-to-metal bonded construction distributes force across four fixing holes, accepting loading in shear, compression, or a combination of both. The M24 threaded element provides a robust connection point suited to heavy-fabrication interfaces. Overall footprint dimensions of 250 mm (D) × 310 mm (E) with a flange thickness of 6 mm and a boss height of 18 mm ensure straightforward integration into large-frame installations. This mount is well suited to heavy construction and off-highway equipment, power generation sets, marine propulsion systems, agricultural machinery, railway and mass transit plant, and military and defence applications where high dynamic loads or impact events must be absorbed without excessive positional displacement. Its rubber-to-metal bond improves machinery lifespan, protects surrounding structures, and contributes to operator comfort even at these elevated load ratings.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM100-60 | FM100260 | FM10028-45 | FM10028-60 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 68mm | 100mm | 100mm | ||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | 51-100mm | 51-100mm | ||
| Thread | M6 | M10 | M10 | M10 | M10 |
A. The FM1500-75 is rated to a maximum load of 3,381 kg, making it the highest-load variant in the FM1500 flanged mounting range.
A. The FM1500-75 has a rated deflection of 41.5 mm. At 75 Shore A — the firmest grade in the FM1500 range — movement under load is minimised, prioritising positional stability over maximum vibration isolation.
A. Key dimensions are: A = 186 mm, B = 160 mm, C = M24 thread, D = 250 mm, E = 310 mm, flange thickness (F) = 6 mm, boss height (G) = 18 mm. It has 4 fixing holes.
A. This mount is suited to heavy construction and off-highway equipment, power generation sets, marine propulsion systems, agricultural machinery, railway and mass transit plant, and military and defence applications — particularly where high dynamic loads or shock events must be absorbed with minimal positional displacement.
A. Harder rubber grades carry higher loads with less movement; softer grades give greater deflection and better vibration isolation at lower loads. The 75 Shore A FM1500-75 is the firmest option in the FM1500 range, optimised for shock resistance and load-bearing stability rather than maximum isolation.
A. Yes. The rubber-to-metal bonded construction allows loading in shear, compression, or a combination of both, providing flexibility in mounting orientation to suit the application.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
