Product Number: FM50-75

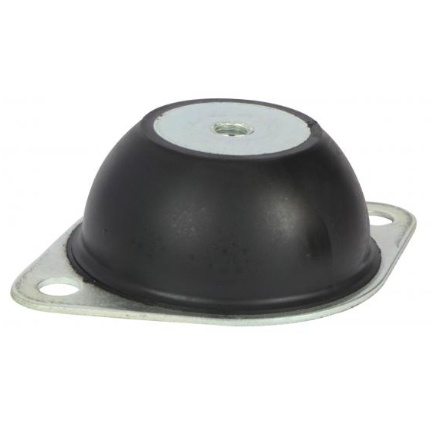

Rated to a maximum load of 101.0 kg with a controlled deflection of just 4.8 mm, the FM50-75 is a firm-grade flanged anti-vibration mount engineered to hold heavy components securely whilst absorbing shock and impact loads. The 75 Shore A rubber hardness means this mount prioritises load-bearing stability over isolation travel, the right choice when equipment must be held firmly in position under sustained or intermittent high forces rather than allowed to move freely. Rubber-to-metal bonded construction delivers the structural integrity needed for demanding service conditions. With two fixing holes, an M10 thread (dimension C), and overall footprint dimensions of 114 mm (E) × 92 mm (D) with a flange thickness of 2 mm (F), this mount integrates readily into machinery frames and baseplate assemblies. The 45 mm (A) and 35 mm (B) body dimensions suit standard mounting bores across many industrial equipment. Mounts of this type may be loaded in shear, compression, or a combination of both. The FM50-75 serves industries where high-load vibration control is essential: construction and off-highway machinery, agricultural equipment, power generation sets, marine installations, railway and mass transit systems, automotive, and military and defence applications. By restraining movement under heavier loads, the mount protects surrounding structures, reduces fatigue on fixings, and supports longer machinery service life. Where oil-resistant or high-temperature rubber compounds are required, or where stainless steel metalwork is specified, custom variants are available on request. This mount forms part of a range covering different sizes and hardness grades.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Flanged Mount Range, Thread Size M6, Max Load 9 Kg- FM007-60
£14.13
£13.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FM007-60 | FM100-60 | FM100260 | FM10028-45 | FM10028-60 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Height | 20mm | 40mm | |||
| Size | 68mm | 100mm | 100mm | ||
| Deflection | 3 | 6.5 | |||
| Size Range | 51-100mm | 51-100mm | 51-100mm | ||
| Thread | M6 | M10 | M10 | M10 | M10 |
A. The FM50-75 is rated to a maximum load of 101.0 kg with a deflection of 4.8 mm. The firm 75 Shore A rubber grade is selected specifically for applications requiring high load-bearing capacity with minimal movement under load.
A. The FM50-75 uses an M10 thread (dimension C) and is secured via 2 fixing holes. Key dimensions are: A 45 mm, B 35 mm, D 92 mm, E 114 mm, F (flange thickness) 2 mm, and G 10 mm.
A. This mount may be loaded in shear, compression, or a combination of both, offering flexibility in how it is oriented and integrated within a machinery assembly.
A. The FM50-75 is suited to construction and off-highway equipment, agricultural machinery, power generation, marine installations, railway and mass transit, automotive, and military and defence applications — particularly where heavier loads, shock, and impact must be managed with firm restraint.
A. The 75 Shore A rubber is the firmest grade in the flanged mount range. It carries the highest load with the least deflection, making it the appropriate choice when equipment must be held firmly in position under sustained or impact loading. Softer grades (40 Shore A or 60 Shore A) are better suited where greater deflection and vibration isolation are the priority.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The flanged range includes FM50-40 (40 Shore A soft grade) and FM50-60 (60 Shore A medium grade). Related mount families include FM007, FM100, FM1500, FM1566, FM200, and FM209, covering a wide spread of load ratings and fixing configurations.
