Product Number: CM507
The CM507 is a 50.8 mm flanged compression mount engineered for rubber-to-metal bonded vibration control across a demanding spread of mobile and industrial applications. With an A-dimension of 50.8 mm, B of 44.4 mm, and an overall H-dimension of 114.3 mm, this is the smallest unit in the flanged compression mounting range, making it the natural choice where envelope space is at a premium without sacrificing structural integrity. Constructed using rubber-to-metal bonded technology, the CM507 incorporates a failsafe design that is specifically suited to mobile applications. The geometry delivers high horizontal stiffness relative to vertical stiffness, a characteristic that controls unwanted movement of engines, cabs, and associated equipment under dynamic operating conditions. The mount may be loaded in shear, compression, or a combination of both, offering versatility in installation orientation. The CM507 is well suited to operator cab isolation on off-highway vehicles and construction and earth-moving machinery, where protecting the operator environment and controlling structural movement are equally critical. It also serves agricultural machinery installations where ground-transmitted vibration must be attenuated effectively. Across all these applications it extends machinery lifespan and protects surrounding structures. For custom requirements, stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional sizes. A larger flanged compression mounting is available in this range: CM508. Select between variants according to the dimensional and load envelope of your application.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 50.8 |
|---|---|
| Width / dimension B (mm) | 44.4 |
| Height / dimension C (mm) | 25.1 |
| Outer diameter D (mm) | 11.7 |
| Dimension E (mm) | 3.2 |
| Fixing hole / dimension F (mm) | 10.3 |
| Fixing hole spacing G (mm) | 47.8 |
| Overall height H (mm) | 114.3 |
| Dimension J (mm) | 63.5 |
| Dimension K (mm) | 89.9 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

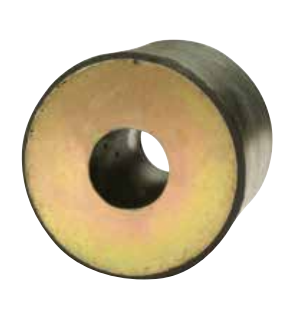

| PRODUCT NUMBER | 5016PRB11 | 5020PRB11 | RE1/50/24.8 | RE1/53/32.5 | 4223TRB18 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 50mm | 50mm | 50mm | 53mm | 42mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 51-100mm | 26-50mm |
A. The CM507 has the following dimensions: A 50.8 mm, B 44.4 mm, C 25.1 mm, D 11.7 mm, E 3.2 mm, F 10.3 mm, G 47.8 mm, H 114.3 mm, J 63.5 mm, K 89.9 mm.
A. The CM507 is designed for use on construction, earth-moving, and agricultural machinery, operator cabs, and off-highway vehicles. It is also suited to power generation, marine, railway, automotive, and military and defence installations.
A. The failsafe design ensures that even in the event of rubber degradation, the metal components retain the mounted assembly, preventing sudden detachment. This is particularly important in mobile applications such as off-highway vehicles and operator cabs, where unexpected component failure poses a safety risk.
A. The CM507 may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation to suit different mounting configurations.
A. It means the mount resists lateral (sideways) forces more firmly than vertical ones. This characteristic is particularly effective at controlling the movement of engines, cabs, and equipment where horizontal restraint is needed alongside vertical vibration isolation.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes. Contact PartsForMachines to discuss your specific requirements.
A. Yes. The CM508 is the next size up in the flanged compression mounting range. Select between variants based on the dimensional and load envelope required for your application.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
