Product Number: 4223TRB18
With a rated maximum load of 163 kg, the 4223TRB18 Ring Element is sized to bridge the gap between light instrument fixings and the heavier-duty end of the anti-vibration range, making it well suited to applications where moderate compressive or shear loads must be absorbed without transmitting vibration into surrounding structures. Its rubber-to-metal bonded construction ensures that isolating force is distributed evenly across the mount body, resisting both axial and lateral movement under working conditions. The ring element format allows the mount to be loaded in shear, compression, or a combination of both, giving engineers flexibility when designing isolation arrangements for equipment in sectors including construction and off-highway machinery, agricultural plant, power generation sets, marine installations, railway and mass transit vehicles, automotive applications, and military and defence platforms. The bonded rubber element protects sensitive equipment, improves machinery service life, and contributes to reduced operator fatigue by attenuating structure-borne noise and shock. Key dimensions are: outer diameter D1 42 mm, secondary diameter D2 40 mm, bore diameter d 18 mm, and height H 23 mm. These proportions position 4223TRB18 within the lower-to-mid band of the ring element range, handling loads up to its 163 kg maximum whilst occupying a compact envelope suited to space-constrained mounting arrangements on light and general-duty equipment. This mount is available alongside a range of related ring element variants: 10254TRB32, 12246TRB38, 6233TRB21, 7233TRB21, 8240TRB25, RE10027, RE11015, and RE11020. Alternative configurations in stainless steel metalwork or oil-resistant and high-temperature rubber compounds are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Diameter / thread d1 (mm) | 42 |
|---|---|
| Diameter / thread d2 (mm) | 40 |
| Fixing thread / bolt size d | 18 |
| Overall height H (mm) | 23 |
| Max load (kg) | 163 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

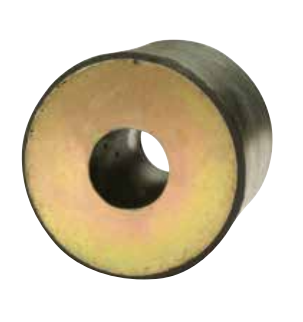

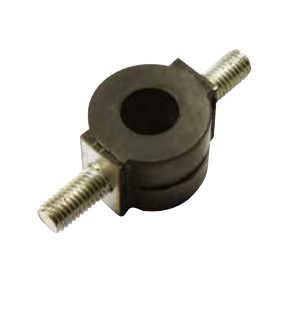

| PRODUCT NUMBER | 4016PRB09 | 4020PRB09 | RE1/40/13.5 | LF1396 | 5016PRB11 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 40mm | 40mm | 40mm | 38.5mm | 50mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
| Thread | M6 | ||||
A. The 4223TRB18 has an outer diameter (D1) of 42 mm, a secondary diameter (D2) of 40 mm, a bore diameter (d) of 18 mm, and a height (H) of 23 mm.
A. The 4223TRB18 is rated to a maximum load of 163 kg.
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility in isolation system design.
A. The mount uses rubber-to-metal bonded construction, bonding the rubber isolating element directly to the metal body for reliable load transfer and durability.
A. It is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications where vibration isolation of equipment is required.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Yes — related variants include 10254TRB32, 12246TRB38, 6233TRB21, 7233TRB21, 8240TRB25, RE10027, RE11015, and RE11020.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
