Product Number: FM20044-60
Rated at a maximum load of 825 kg with a controlled deflection of 7 mm, the FM20044-60 is the largest mount in the capped flanged range and is built for machinery installations where both substantial load-bearing capacity and a dependable degree of vibration isolation must be achieved in the same mount. At 60 Shore A, this medium-grade rubber delivers the broad middle ground between soft-grade isolation and hard-grade rigidity, accepting heavy static and dynamic loads while still attenuating the vibration energy that shortens machinery lifespan and transfers unwanted movement to surrounding structures. Constructed with rubber-to-metal bonded technology, the mount offers the dimensional specification to match demanding fixings: flange diameter 200 mm, overall height 44 mm, M18 thread, with key envelope dimensions of E 140 mm, F 240 mm, G 280 mm and H 15 mm. The capped design protects the thread from contamination in workshop, agricultural and off-highway environments. Mounts of this geometry may be loaded in shear, compression, or a combination of both, making them adaptable to varied mounting orientations and installation geometries. By dampening structure-borne vibration, the mount also improves operator comfort and protects adjacent structures and electronics from transmitted shock. The family serves the full span of industrial sectors where machinery must be correctly isolated: power generation, marine, construction and off-highway, agriculture, railway and mass transit, automotive, and military and defence.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

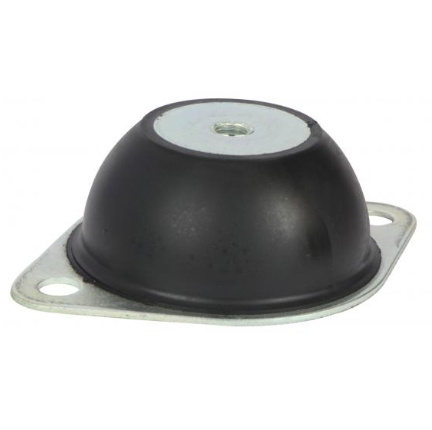

| PRODUCT NUMBER | FM20044-45 | FM20044-75 | FM2001350 | FM15039-45 | FM15039-60 |
| Type | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount | Flanged Mount |
| Size | 200mm | 200mm | 159mm | 150mm | 150mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M18 | M18 | M16 | M14 | M14 |
A. The FM20044-60 is rated to a maximum load of 825 kg with a deflection of 7 mm.
A. The mount has a flange diameter (A) of 200 mm, overall height (B) of 44 mm, M18 thread (C), D of 35 mm, E of 140 mm, F of 240 mm, G of 280 mm and H of 15 mm.
A. The FM20044-60 uses a 60 Shore A medium-grade rubber. This grade offers a balance of load-bearing capacity and vibration isolation, making it suitable for the broad middle ground of industrial machinery mounting where both support and attenuation are required.
A. Capped flanged mounts of this type may be loaded in shear, compression, or a combination of both, giving flexibility across varied mounting orientations.
A. The mount is suited to power generation, marine, construction and off-highway, agriculture, railway and mass transit, automotive, and military and defence applications where heavy machinery requires controlled vibration isolation.
A. Yes — the FM20044-45 provides a softer 45 Shore A grade for greater deflection and isolation at lower loads, while the FM20044-75 offers a firmer 75 Shore A grade for the highest load and shock-restraint duties.
A. Yes — smaller capped flanged mounts are available as FM10028, FM15039, FM4020, FM6024 and FM8027.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
