Product Number: OSM50-A
Variations
Compact and suited to lighter, vibration-sensitive installations, the OSM50-A is a 51mm open spring mounting with an M8 thread, rated to a maximum load of 50 kg and offering up to 23 mm of deflection under working conditions. This level of deflection is characteristic of the high-deflection, low-natural-frequency performance that open spring mountings are built to give, making the OSM50-A a practical choice where effective isolation of low-frequency vibration is the primary requirement. The mount employs rubber-to-metal bonded construction, allowing it to accept loading in compression, shear, or a combination of both. This construction approach contributes directly to improved machinery lifespan and protection of surrounding structures, whilst also supporting better operator comfort in installations where transmitted vibration would otherwise be a concern. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes. Are available on request. The OSM50-A is applicable across many industries and operating environments. Source-confirmed sectors include construction and off-highway, power generation, marine, agriculture, and railway and mass transit applications, as well as automotive, military and defence use. The mount is intended for normal working conditions and should not be loaded beyond its specified 23 mm deflection limit. For heavier duty or larger-footprint requirements within the open spring mounting range, companion variants are available: OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B, and OSM15-C. This product is supplied as a single open spring mounting unit. No warranty information is specified in the source data.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | A |
|---|---|
| Overall length / diameter A (mm) | 51 |
| Width / dimension B (mm) | 70 |
| Height / dimension C (mm) | M8 |
| Across flats / clearance CF (mm) | - |
| Outer diameter D (mm) | - |
| Dimension E (mm) | - |
| Fixing hole / dimension F (mm) | - |
| Max load (kg) | 50 |
| Deflection (mm) | 23 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

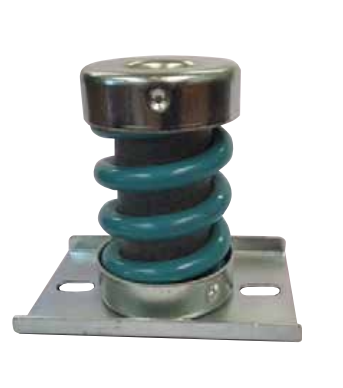

| PRODUCT NUMBER | OSM100-C | OSM125-C | OSM15-C | OSM25-C | OSM5-C |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 51mm | 51mm | 51mm | 51mm | 51mm |
| Deflection | 23 | 23 | 23 | 23 | 23 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M15 | M25 | M5 | ||
A. The OSM50-A is rated to a maximum load of 50 kg and offers up to 23 mm of deflection under normal working conditions.
A. The OSM50-A uses an M8 thread, with an overall mount diameter (A) of 51 mm and a height (B) of 70 mm.
A. Open spring mountings with rubber-to-metal bonded construction, such as the OSM50-A, may be loaded in shear, compression, or a combination of both.
A. The OSM50-A is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications where low-frequency vibration isolation is required.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. The range also includes OSM100-A, OSM100-B, OSM100-C, OSM125-B, OSM125-C, OSM15-A, OSM15-B, and OSM15-C, covering a broader spread of load and size requirements.
