Product Number: OSM25-A
Variations

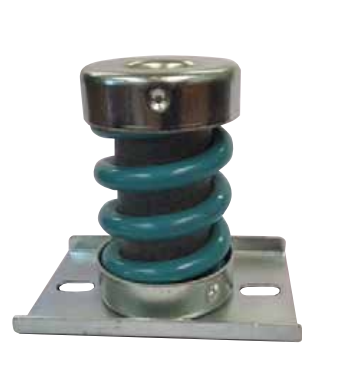

Compact and light-duty by design, the OSM25-A is a Type A open spring mounting with a 51mm body diameter, M8 thread fixing, a maximum load capacity of 25kg, and a rated deflection of 23mm, making it well suited to sensitive or lightly loaded installations where controlled low-frequency vibration isolation is the priority. Built with rubber-to-metal bonded construction, this open spring mount accommodates loading in shear, compression, or a combination of both. The design allows the high deflection and low natural frequency characteristics required in applications where conventional rigid mountings would transmit unwanted vibration to surrounding structures or operators. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request. The OSM25-A is suited to environments such as power generation, marine installations, agricultural machinery, and light industrial plant, wherever compact footprint and lower load duty call for precise isolation without over-engineering the mounting arrangement. Its 23mm deflection figure supports effective attenuation of low-frequency excitation sources common in these settings. By reducing transmitted vibration, the mount contributes to improved machinery lifespan, protection of surrounding structures, and enhanced operator comfort. This mount is part of a broader range of open spring mountings. Sibling variants include OSM15-A, OSM15-B, OSM15-C, OSM100-A, OSM100-B, OSM100-C, OSM125-B, and OSM125-C, covering a spectrum of load capacities and configurations to suit varied installation requirements. The OSM25-A is supplied as an individual mounting unit. No warranty information is specified for this product. Manufactured in the United Kingdom.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | A |
|---|---|
| Overall length / diameter A (mm) | 51 |
| Width / dimension B (mm) | 70 |
| Height / dimension C (mm) | M8 |
| Across flats / clearance CF (mm) | - |
| Outer diameter D (mm) | - |
| Dimension E (mm) | - |
| Fixing hole / dimension F (mm) | - |
| Max load (kg) | 25 |
| Deflection (mm) | 23 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | OSM100-C | OSM125-C | OSM15-C | OSM25-C | OSM5-C |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 51mm | 51mm | 51mm | 51mm | 51mm |
| Deflection | 23 | 23 | 23 | 23 | 23 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M15 | M25 | M5 | ||
A. The OSM25-A is a Type A open spring mounting with a 51mm body dimension (A), a 70mm dimension (B), an M8 thread (C), a maximum load capacity of 25kg, and a rated deflection of 23mm.
A. The OSM25-A carries a maximum load of 25kg and delivers a deflection of 23mm, making it appropriate for lighter, compact, or sensitive installations requiring controlled low-frequency isolation.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is oriented within a mounting arrangement.
A. The OSM25-A is used across power generation, marine, agricultural, construction and off-highway, railway and mass transit, automotive, and military and defence applications — particularly where a compact mount is needed at lighter load duties.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. The range includes OSM15-A, OSM15-B, OSM15-C, OSM100-A, OSM100-B, OSM100-C, OSM125-B, and OSM125-C, covering a variety of load capacities and configurations.
