Product Number: OSM125-C
Variations

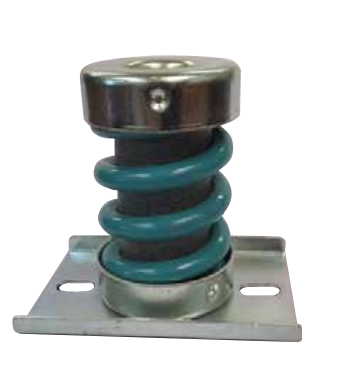

Designed for mainstream general-machinery applications where moderate-to-substantial loads demand reliable low-frequency vibration isolation, the OSM125-C is a Type C open spring mounting with a 51 mm (A) footprint and a maximum load rating of 125 kg. With a rated deflection of 23 mm, this mount operates within the principle that high deflection and low natural frequency work together to isolate machinery vibration effectively in normal working conditions. Constructed using rubber-to-metal bonded technology, the OSM125-C combines a steel spring housing with bonded rubber elements, producing a mount that can accept loading in shear, compression, or a combination of both. Key dimensional references are: A 51 mm, B 73 mm, D 70 mm, E 106 mm, and fixing aperture F 11×16 mm, with a centring flange (CF) of 80 mm. The absence of a C dimension denotes the open-frame configuration characteristic of this series. This mount is suited to the vibration and shock demands found across a broad spread of industries, including power generation, construction and off-highway equipment, agriculture, marine installations, and automotive and railway applications. By absorbing and isolating vibration at source, it extends the operational life of machinery, reduces the transmission of structure-borne noise to surrounding frameworks, and contributes to improved operator comfort over extended working periods. The OSM125-C sits at mid-range within the open spring mounting family.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | C |
|---|---|
| Overall length / diameter A (mm) | 51 |
| Width / dimension B (mm) | 73 |
| Height / dimension C (mm) | - |
| Across flats / clearance CF (mm) | 80 |
| Outer diameter D (mm) | 70 |
| Dimension E (mm) | 106 |
| Fixing hole / dimension F (mm) | 11x16 |
| Max load (kg) | 125 |
| Deflection (mm) | 23 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | OSM100-A | OSM100-B | OSM125-B | OSM15-A | OSM15-B |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 51mm | 51mm | 51mm | 51mm | 51mm |
| Deflection | 23 | 23 | 23 | 23 | 23 |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M8 | M8 | M8 | M8 | M8 |
A. The OSM125-C has a maximum load rating of 125 kg and a rated deflection of 23 mm, making it suitable for mainstream general-machinery mounting at moderate to substantial loads under normal working conditions.
A. The principal dimensions are: A 51 mm, B 73 mm, D 70 mm, E 106 mm, centring flange (CF) 80 mm, and fixing aperture F 11×16 mm. The Type C designation reflects the open-frame configuration of this series.
A. The rubber-to-metal bonded construction of this mount allows it to be loaded in shear, compression, or a combination of both, providing flexibility in mounting orientation to suit different machinery installations.
A. This mount is designed for use across power generation, construction and off-highway equipment, agriculture, marine, automotive, and railway and mass transit applications where low-frequency isolation and controlled deflection are required.
A. Open spring mounts improve machinery lifespan by isolating vibration at source, protect surrounding structures from structure-borne transmission, and improve operator comfort during extended operation.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes, to suit more demanding operating environments.
A. Related variants include the OSM15-A, OSM15-B, OSM15-C, OSM25-A, OSM100-A, OSM100-B, OSM100-C, and OSM125-B, covering a range of load capacities, footprint sizes, and type configurations.
