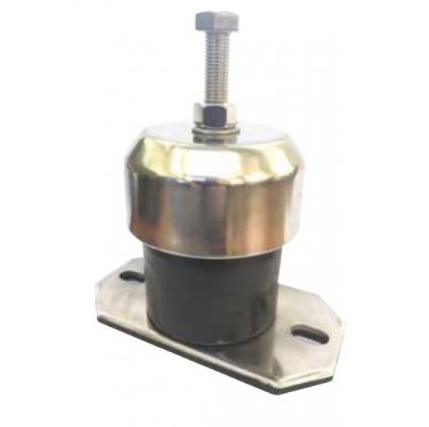

Carrying loads across the mid-range of the enclosed spring mounting family, the ESM is a rubber-to-metal bonded spring mount with overall dimensions of 150 mm (A) × 79 mm (B) × 120 mm (C) and a 105 mm base footprint (D), designed for applications where high deflection and low natural frequency isolation are required under normal working conditions. The rubber-to-metal bonded construction allows the mount to be loaded in shear, compression, or a combination of both, giving engineers flexibility in installation orientation. A 100 mm element height (E), 10 mm rubber layer (F), and M12 fixing thread (G) are consistent with mid-range industrial duty, where deflection up to approximately 20 mm is the working envelope. The enclosed spring housing protects the spring element and keeps the assembly contained under load, making it well suited to environments where the mount could be exposed to debris or restricted access limits inspection. Applications where the ESM delivers value include power generation plant and agricultural machinery, where sustained vibration from engines and drives must be attenuated to protect surrounding structure and improve operator environment. The mount also finds application in marine, railway and mass transit installations, and in construction and off-highway equipment, wherever low natural frequency isolation is required and a robust, enclosed form factor is preferred over open-style mountings. Rubber compound and metal finish options in oil-resistant or high-temperature rubbers and stainless steel are available on request for non-standard environments.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 150 |
|---|---|
| Width / dimension B (mm) | 79 |
| Height / dimension C (mm) | 120 |
| Outer diameter D (mm) | 105 |
| Dimension E (mm) | 100 |
| Fixing hole / dimension F (mm) | 10 |
| Fixing hole spacing G (mm) | M12 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL25/100 | ESL25/1000 | ESL25/1200 | ESL25/200 | ESL25/300 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 180mm | 180mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | 25 | 25 |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M16 | M16 | M16 | M16 | M16 |
A. The ESM has an overall length (A) of 150 mm, a width (B) of 79 mm, and a height (C) of 120 mm. The base footprint (D) is 105 mm, the element height (E) is 100 mm, the rubber layer thickness (F) is 10 mm, and the fixing thread (G) is M12.
A. Under normal working conditions the mount is loaded to a maximum of approximately 20 mm deflection, which is the standard working envelope for this enclosed spring mounting series.
A. The ESM may be loaded in shear, compression, or a combination of both, providing installation flexibility to suit different machinery configurations.
A. The ESM is suitable for power generation, agriculture, marine, railway and mass transit, construction and off-highway, automotive, and military and defence applications — wherever high deflection and low natural frequency isolation are required under normal working conditions.
A. The enclosed housing protects the spring element from debris and containment loss under load, making it preferable in environments with restricted access or exposure to contaminants. The rubber-to-metal bonded construction helps improve machinery lifespan, protect surrounding structures, and improve operator comfort.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
A. The range includes ESL, ESL-HD, ESS, ESL25/100, ESL25/1000, ESL25/1200, ESL25/1400, and ESL25/200, covering a variety of load capacities and sizes. The ESL-HD variant supports deflection up to 40 mm for heavy-duty applications.
