Product Number: PB130
Variations
Sensitive and compact installations benefit from the square plate buffer PB130, a rubber-to-metal bonded mount dimensioned at 130 mm outer plate, 100 mm square top face, 78 mm height and 11 mm bore, carrying a maximum load of 9,500 kg, making it a capable choice where a relatively slender profile must handle controlled impact energy without transmitting shock to surrounding structures. The design works by absorbing and dissipating energy on contact, cushioning machinery against impact shocks from external moving components and acting as an elastic element in direct contact with a surface. Low-cost installation and ease of fitment are inherent to the flat-buffer format, with the rubber hardness characteristic ensuring deflection is proportionate to the force applied. Softer grades in the family give greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement; the PB130 sits comfortably in the lighter, compact end of the square plate buffer range. Applications served by the square plate buffer family include elevators, agricultural equipment, construction and off-highway machinery, industrial machinery, and commercial vehicles, across industries extending to marine, railway and mass transit, power generation, automotive, and military and defence sectors. The mount can be loaded in shear, compression, or a combination of both, improving machinery lifespan, protecting surrounding structures, and improving operator comfort. Additional sizes are available in the PB range: see PB50, PB63, PB100, PB125, PB160, PB1700-2, PB200, and PB250 for the full selection of square plate buffer formats.
The Square Plate buffers are an effective alternative solution to absorbing high levels of shock and load, giving equipment excellent protection. The heavy-duty rubber and mild steel flange, with four pre-drilled bolt holes, allows this mount to be extremely versatile.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

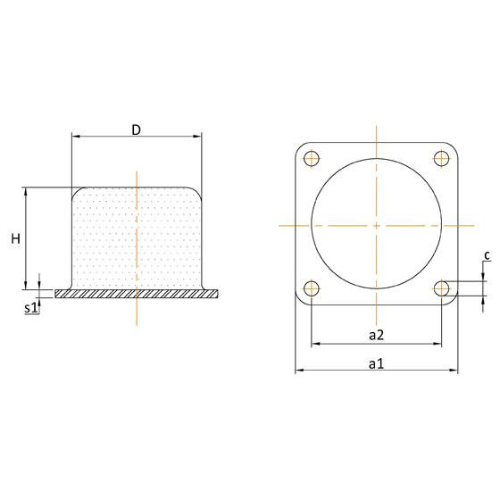

| Mounting Plate Length (a1) | 130mm |
|---|---|
| Mounting Plate Width (a2) | 100mm |
| Top Outer Dimension (D) | 100mm |
| Fixing Hole Dimension (d) | 11mm |
| Height (H) | 78mm |
| Base Plate Thickness (s1) | 6mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£33.42
£32.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100120MCB30-60 | 100120MCB31-45 | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 121mm | 100mm | 100mm | 100mm | |
| Height | 120mm | ||||
| Size | 105x121mm | 100x100mm | 100x100mm | 100x100mm | |
| Deflection | 30mm | 30 | 23 | 23 | 23 |
| Diameter | 105mm | 100mm | 100mm | 100mm | |
| Diameter Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Shore Hardness | 45 | 45 | 60 | 70 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The PB130 has an outer plate dimension (D1) of 130 mm, a top face dimension (A and D2) of 100 mm, a height (H) of 78 mm, a bore diameter (d) of 11 mm, and a stud/bolt spacing (S) of 6 mm. The maximum load rating is 9,500 kg.
A. The square plate buffer family is used across elevators, agricultural equipment, construction and off-highway machinery, industrial machinery, and commercial vehicles. Industries served include marine, railway and mass transit, power generation, automotive, and military and defence.
A. The buffer works by absorbing and dissipating energy on contact, cushioning machinery against impact shocks from external moving components. It can act as an elastic element in direct contact with a surface and may be loaded in shear, compression, or a combination of both.
A. The PB130 uses rubber-to-metal bonded construction, which bonds the rubber element to the metal plate to maintain integrity under repeated loading and ensure consistent energy absorption performance.
A. Softer grades give greater deflection and better isolation at lower loads, making them well suited to lighter or sensitive installations. Harder grades carry higher loads with less movement. The PB130 sits at the lighter, compact end of the square plate buffer range.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. The range also includes PB50, PB63, PB100, PB125, PB160, PB1700-2, PB200, and PB250, covering a broad spread of plate dimensions and load capacities.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
