Product Number: PB160
Variations
Positioned at the upper end of the square plate buffer range, the PB160 handles a maximum rated load of 15,290 kg across a 160 mm base plate, making it a compelling choice for mainstream general-machinery mounting where moderate-to-substantial static loads must be cushioned without sacrificing structural simplicity. The 125 mm square top plate (D2: 125 mm) and 100 mm overall height (H: 100 mm) give this buffer a robust, compact footprint well suited to equipment where vertical envelope is constrained but load demands remain high. Constructed with rubber-to-metal bonded technology, the PB160 absorbs and dissipates impact energy delivered by external moving components, reducing transmitted shock to the host structure and to surrounding machinery. The 11 mm mounting hole diameter (d: 11 mm) and 6 mm plate thickness (S: 6 mm) ensure straightforward bolt-through installation on standard fabricated frames and machinery bases. As a male flat buffer design, installation is direct and requires no additional hardware beyond the fixing fastener. The PB160 serves across a wide spread of demanding industries: construction and off-highway equipment, industrial machinery, power generation plant, agricultural equipment, marine installations, and commercial vehicles. Its upper-range load capacity positions it particularly well where repeated moderate impacts occur at elevated static pre-load, applications such as large fabrication machinery bases, commercial vehicle body mounts, and heavy agricultural implement attachments. The buffer also improves operator comfort by attenuating vibration at source, while protecting surrounding structures from progressive fatigue damage.
The Square Plate buffers are an effective alternative solution to absorbing high levels of shock and load, giving equipment excellent protection. The heavy-duty rubber and mild steel flange, with four pre-drilled bolt holes, allows this mount to be extremely versatile.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

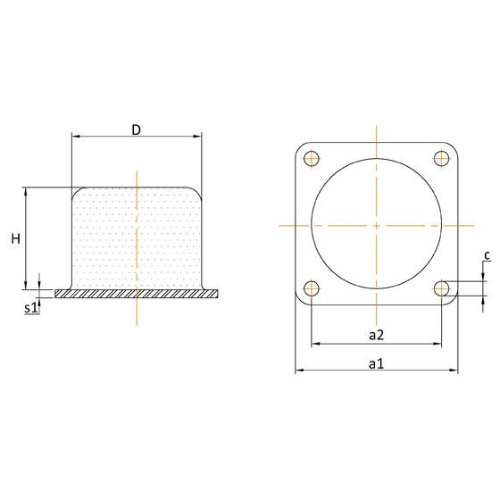

| Mounting Plate Length (a1) | 160mm |
|---|---|
| Mounting Plate Width (a2) | 125mm |
| Top Outer Dimension (D) | 125mm |
| Fixing Hole Dimension (d) | 11mm |
| Height (H) | 100mm |
| Base Plate Thickness (s1) | 6mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Conical Buffer - Anti-Vibration, Thread Size M12, Max Load 420Kg - 100120MCB30-60
£33.42
£32.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100120MCB30-60 | 100120MCB31-45 | 100100MCB31-45 | 100100MCB31-60 | 100100MCB31-70 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 121mm | 100mm | 100mm | 100mm | |
| Height | 120mm | ||||
| Size | 105x121mm | 100x100mm | 100x100mm | 100x100mm | |
| Deflection | 30mm | 30 | 23 | 23 | 23 |
| Diameter | 105mm | 100mm | 100mm | 100mm | |
| Diameter Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 101-200mm | 51-100mm | 51-100mm | 51-100mm | |
| Shore Hardness | 45 | 45 | 60 | 70 | |
| Thread | M12 | M12 | M12 | M12 | M12 |
| Show More | |||||
A. The PB160 has a base plate diameter/width (D1) of 160 mm, a top plate dimension (A and D2) of 125 mm, an overall height (H) of 100 mm, a mounting hole diameter (d) of 11 mm, and a plate thickness (S) of 6 mm.
A. The PB160 is rated to a maximum load of 15,290 kg.
A. The PB160 is suited to construction and off-highway equipment, industrial machinery, power generation plant, agricultural equipment, marine installations, commercial vehicles, and any application requiring cushioning of impact shocks from external moving components at moderate-to-high static loads.
A. The buffer uses rubber-to-metal bonded construction to absorb and dissipate energy from impact and vibration, reducing transmitted force to the host structure, protecting surrounding equipment, and improving operator comfort.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes within the range.
A. The range includes PB50, PB63, PB100, PB125, PB130, PB200, PB250, and the flanged variant PB1700-2, offering a wide selection to match different load, geometry, and installation requirements.
