Product Number: PB238-70
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

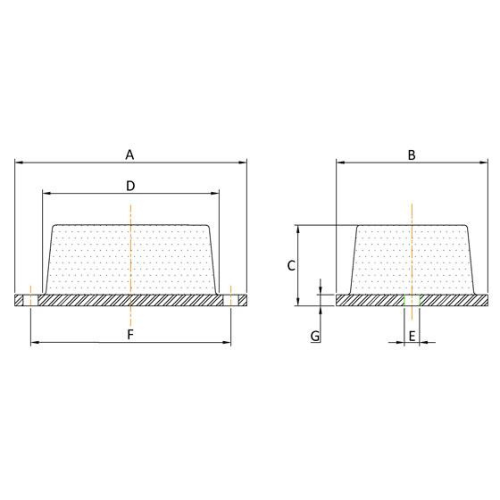

| Top Dimension (A) | 121mm |
|---|---|
| Base Dimension (B) | 57mm |
| Overall Height (C) | 56mm |
| Buffer Width (D) | 86mm |
| Center Hole Dimension (E) | 8.6mm |
| Base Width (F) | 105mm |
| Base Thickness (G) | 6.3mm |
| Max Load (kg) | 4200 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | PB238-60 | PB15 | PB260 | PB150 | 9580MCB45-70 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 80mm | ||||
| Size | 125.0mm | 127.0mm | 95x80mm | ||
| Deflection | 20 | ||||
| Diameter | 95mm | ||||
| Diameter Range | 51-100mm | ||||
| Length Range | 51-100mm | ||||
| Overall Height | 56mm | 50mm | 36mm | 29mm | |
| Shore Hardness | 70 | ||||
| Thread | M16 | ||||
| Show More | |||||
A. The PB238 has an overall length (A) of 105.0 mm, a flange diameter (D1) of 121.0 mm, a base diameter (D2) of 86 mm, a core diameter (D3) of 57.0 mm, a height (H) of 56 mm, a stud diameter (d) of 8.6 mm, and a stud length (S) of 6.3 mm.
A. The PB238 plate buffer has a maximum load rating of 4,200 kg, making it the highest-capacity buffer in the standard range and suited to heavy general-machinery mounting applications.
A. The plate buffer family is used across construction and off-highway equipment, industrial machinery, agricultural equipment, elevators, commercial vehicles, power generation, marine, railway and mass transit, and automotive applications.
A. Male flat plate buffers absorb and dissipate impact energy between a moving component and a fixed surface. The rubber-to-metal bonded construction allows the mount to accept forces in compression, shear, or a combination of both, reducing shock transfer to surrounding structures and improving machinery lifespan.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. The range includes PB15, PB260, and PB335, each offering different dimensional envelopes and load capacities. The PB238 is the largest in the standard range at 105.0 mm overall length and 4,200 kg maximum load.
