Product Number: PB15
General-machinery mounting demands a buffer that sits squarely between light-duty isolation and heavy shock restraint, and the PB15 Plate Buffer is built precisely for that mainstream band, rated to 3,000 kg maximum load with a 125.0 mm overall height and a 150.0 mm outer diameter. Rubber-to-metal bonded construction gives it the structural integrity to handle repeated impact cycles across a broad spread of industrial environments while its geometry, d2 90 mm inner flange, D3 60.0 mm, 10.0 mm mounting hole diameter and 6.0 mm steel plate thickness. Keeps installation straightforward on standard fabricated or cast mounting faces. As a Male Flat plate buffer, the PB15 functions by absorbing and dissipating energy rather than redirecting force, making it equally suited to act as a direct elastic contact element between surfaces or to cushion against secondary moving components. It reduces impact force transmitted to frames and structure, improving both machinery lifespan and operator comfort without requiring complex fitment hardware. The plate buffer format is applicable across construction and off-highway equipment, industrial machinery, agricultural equipment, elevators and commercial vehicles, sectors where moderate-to-high cyclic loading calls for reliable, repeatable energy absorption at the 50 mm compressed height. Custom variants with oil-resistant or high-temperature rubbers and stainless steel metalwork are available on request where operating environments demand it. The PB15 belongs to a family of Plate Buffers covering a range of load capacities and dimensions.
Plate buffers are an effective alternative solution to absorbing high levels of shock and load, giving equipment excellent protection. The heavy-duty rubber and mild steel flange, with pre-drilled bolt holes, allow this mount to be extremely versatile.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

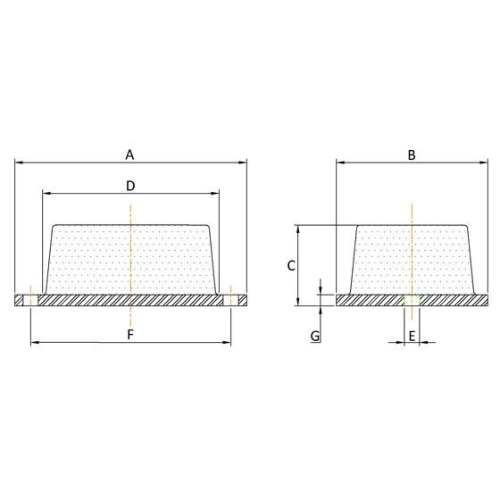

| Top Dimension (A) | 150mm |
|---|---|
| Base Dimension (B) | 60mm |
| Overall Height (C) | 50mm |
| Buffer Width (D) | 90mm |
| Center Hole Dimension (E) | 10mm |
| Base Width (F) | 125mm |
| Base Thickness (G) | 6mm |
| Max Load (kg) | 3000 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | PB260 | PB238-60 | PB238-70 | PB150 | 9580MCB45-70 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 80mm | ||||
| Size | 127.0mm | 95x80mm | |||
| Deflection | 20 | ||||
| Diameter | 95mm | ||||
| Diameter Range | 51-100mm | ||||
| Length Range | 51-100mm | ||||
| Overall Height | 36mm | 56mm | 56mm | 29mm | |
| Shore Hardness | 70 | ||||
| Thread | M16 | ||||
| Show More | |||||
A. The PB15 is rated to a maximum of 3,000 kg.
A. The PB15 has an overall height (A) of 125.0 mm, outer diameter (D1) of 150.0 mm, D2 of 90 mm, D3 of 60.0 mm, compressed height (H) of 50 mm, mounting hole diameter (d) of 10.0 mm, and steel plate thickness (S) of 6.0 mm.
A. The PB15 uses rubber-to-metal bonded construction, which provides structural integrity across repeated impact and compression cycles.
A. It is suited to construction and off-highway equipment, industrial machinery, agricultural equipment, elevators and commercial vehicles — wherever reliable energy absorption and impact cushioning are required at moderate-to-high cyclic loads.
A. It absorbs and dissipates energy rather than redirecting force. It can act as a direct elastic contact element between two surfaces or cushion machinery against impact from secondary moving components, reducing transmitted force and protecting surrounding structure.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. Related variants include PB238 (SKU: PB238), PB260 (SKU: PB260) and PB335 (SKU: PB335). Consult individual listings for their load ratings and dimensional specifications.
