Product Number: PB260
Compact and suited to lighter, sensitive installations, the PB260 is a rubber-to-metal bonded plate buffer measuring 127.0 mm (A dimension) with an outer flange diameter of 156.0 mm (D1), a working face diameter of 88 mm (D2), a centre boss diameter of 64.0 mm (D3), a height of 36 mm (H), a mounting hole diameter of 13.5 mm (d), a steel plate thickness of 5.0 mm (S), and a maximum rated load of 2,400 kg. Positioned in the lower portion of the plate buffer range, PB260 is engineered for applications where space envelope and load sensitivity demand a more compact format without compromising energy absorption. Plate buffers of this type function by absorbing and dissipating impact energy, cushioning machinery against shock loads transmitted by external moving components. The rubber-to-metal bonded construction delivers consistent elastic response under compression and shear, reducing transmitted impact force and acting as a resilient element in direct contact with a surface. This design approach improves machinery lifespan and protects surrounding structures from repeated impact loading. Where operator environment is a consideration, the energy-dissipating action also contributes to improved operator comfort. The PB260 is well suited to construction equipment, agricultural machinery, commercial vehicles, and industrial machinery where controlled impact absorption at moderate load levels is required. It is equally applicable in elevator installations and across power generation, marine, railway and mass transit, automotive, and military and defence sectors.
Plate buffers are an effective alternative solution to absorbing high levels of shock and load, giving equipment excellent protection. The heavy-duty rubber and mild steel flange, with pre-drilled bolt holes, allow this mount to be extremely versatile.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

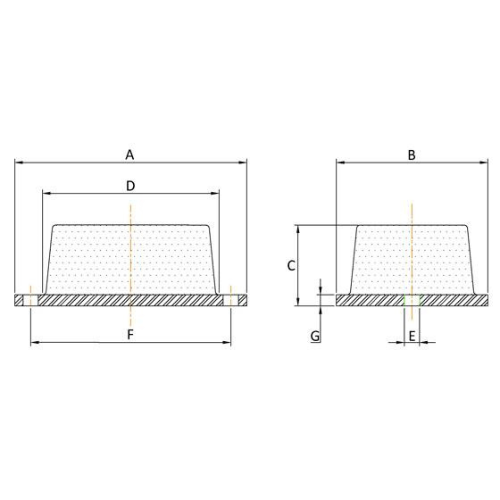

| Top Dimension (A) | 156mm |
|---|---|
| Base Dimension (B) | 64mm |
| Overall Height (C) | 36mm |
| Buffer Width (D) | 88mm |
| Center Hole Dimension (E) | 13.5mm |
| Base Width (F) | 127mm |
| Base Thickness (G) | 5mm |
| Max Load (kg) | 2400 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | PB15 | PB238-60 | 10095MCB31-70 | 100100MCB31-70 | 9580MCB45-70 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 95mm | 100mm | 80mm | ||
| Size | 125.0mm | 105x95mm | 100x100mm | 95x80mm | |
| Deflection | 24 | 23 | 20 | ||
| Diameter | 105mm | 100mm | 95mm | ||
| Diameter Range | 101-200mm | 51-100mm | 51-100mm | ||
| Length Range | 51-100mm | 51-100mm | 51-100mm | ||
| Overall Height | 50mm | 56mm | |||
| Shore Hardness | 70 | 70 | 70 | ||
| Thread | M12 | M12 | M16 | ||
| Show More | |||||
A. The PB260 has an A dimension (overall length/height reference) of 127.0 mm, an outer flange diameter (D1) of 156.0 mm, a working face diameter (D2) of 88 mm, a centre boss diameter (D3) of 64.0 mm, an overall height (H) of 36 mm, a mounting hole diameter (d) of 13.5 mm, and a steel plate thickness (S) of 5.0 mm.
A. The PB260 plate buffer is rated to a maximum load of 2,400 kg.
A. The PB260 uses rubber-to-metal bonded construction to absorb and dissipate impact energy when an external moving component makes contact. It can be loaded in compression, shear, or a combination of both, cushioning the receiving structure against impact force and reducing transmitted shock to surrounding machinery and components.
A. The PB260 is suitable for construction equipment, agricultural machinery, commercial vehicles, industrial machinery, and elevator installations. It also sees use in power generation, marine, railway and mass transit, automotive, and military and defence applications where controlled impact absorption is required.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, alongside additional and non-standard sizes.
A. Yes — the range includes PB15 and PB238 as alternative options, and the larger PB335 for higher-load or larger-envelope requirements. All variants are listed on the PartsForMachines platform.
