Product Number: 3030MFB20-60

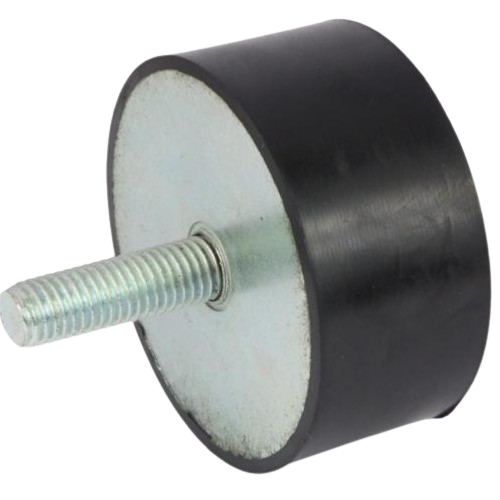

Balancing resilience with controlled deflection, the 3030MFB20-60 is a 30 x 30 mm Male Flat Buffer rated at 60 Shore A, a medium hardness grade suited to the broad middle ground of machinery mounting and vibration management. With a maximum load of 77.5 kg and a deflection of 7.50 mm, this buffer occupies the lighter-load band within the 30 x 30 mm flat buffer range, making it well placed for compact assemblies and installations where moderate energy absorption is required without the rigidity of a firmer grade. Constructed with rubber-to-metal bonded technology, the 3030MFB20-60 absorbs and dissipates impact energy through its rubber element while the M8 x 20 mm male stud provides a secure, straightforward fixing. The medium 60 Shore A compound delivers a useful balance between load-carrying capacity and deflection travel, offering meaningful vibration isolation alongside adequate structural support, neither sacrificing movement range for rigidity nor sacrificing support for compliance. The flat buffer format is designed for low-cost shock and vibration absorption and can act as an elastic element in direct contact with a surface or reduce the impact force from a secondary moving component. Typical applications include industrial machinery, agricultural equipment, construction equipment, commercial vehicles, and elevator installations. The rubber element may be loaded in compression, shear, or a combination of both depending on the mounting configuration. This product is available in additional Shore hardness grades: 45 Shore A (3030MFB20-45) and 70 Shore A (3030MFB20-70).
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

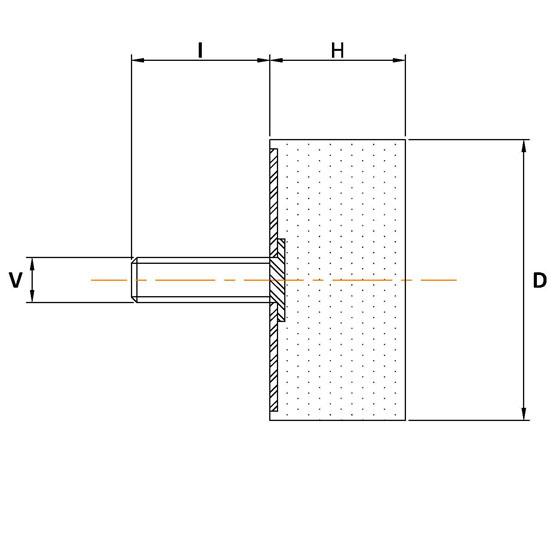

| Rubber Mount Dimension (D) | 30mm |
|---|---|
| Height (H) | 30mm |
| Thread Size (V) | M8 |
| Bolt Length (I) | 20mm |
| Max Load (Kg) | 77.5 |
| Deflection (mm) | 7.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Female Flat Buffer - Anti-Vibration, Thread Size M8, Max Load 79Kg - 3030FFB08-60
£11.18
£10.96
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2530MFB20-70 | 3020FFB06-45 | 3040MFB20-60 | 2530FFB06-70 | 3030FFB08-60 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 30mm | 20mm | 40mm | 30mm | |
| Height | 30mm | ||||
| Size | 25x30mm | 30x20mm | 30x40mm | 25x30mm | 30x30mm |
| Deflection | 7.5 | 5 | 10 | 7.5 | 7.5 |
| Diameter | 25mm | 30mm | 30mm | 25mm | |
| Diameter Range | 11-25mm | 26-50mm | 26-50mm | 11-25mm | |
| Length Range | 26-50mm | 11-25mm | 26-50mm | 26-50mm | |
| Shore Hardness | 70 | 45 | 60 | 70 | |
| Thread | M8 | M6 | M8 | M6 | M8 |
| Show More | |||||
A. The buffer measures 30 mm diameter by 30 mm height, with an M8 x 20 mm male stud. It has a maximum load rating of 77.5 kg and a deflection of 7.50 mm.
A. This buffer is 60 Shore A, a medium hardness grade. It provides a balance between vibration isolation and load-carrying support, with 7.50 mm of deflection travel at up to 77.5 kg — suited to the broader middle ground of machinery mounting rather than very light or very heavy-duty applications.
A. Male Flat Buffers of this type are used across construction equipment, industrial machinery, agricultural equipment, commercial vehicles, and elevator installations. The rubber element may be loaded in compression, shear, or a combination, depending on the mounting arrangement.
A. The rubber-to-metal bonded construction absorbs and dissipates energy from impact shocks or vibration, reducing the force transmitted to surrounding structures, improving machinery lifespan, and enhancing operator comfort.
A. Yes. The 30 x 30 mm format is also available in 45 Shore A (3030MFB20-45) and 70 Shore A (3030MFB20-70). Additional sizes in the Male Flat Buffer family include 0808MFB06, 10030MFB41, 10040MFB44, 10050MFB41, 10055MFB44, and 100100MFB44. Custom sizes, stainless steel metalwork, and specialist rubber compounds are available on request.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
