Product Number: 3030FFB08-60

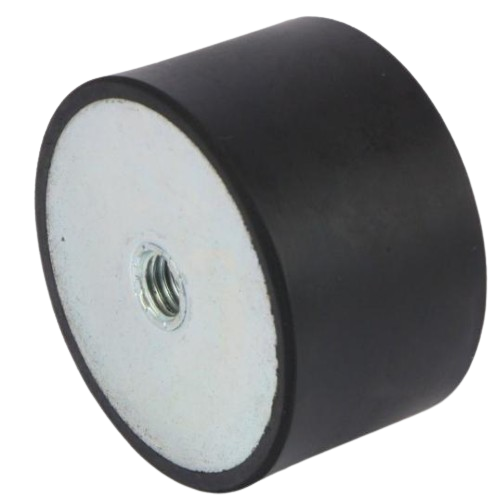

Balancing vibration isolation with structural support, the 3030FFB08-60 is a 30 x 30 mm female flat buffer rated to a maximum load of 79.0 kg with a deflection of 7.5 mm, threaded M8, and vulcanised to a 60 Shore A rubber compound. This medium-hardness grade occupies the broad middle ground of the flat buffer range, offering neither the high compliance of softer grades nor the stiffness of harder ones, making it a dependable choice wherever a mount must absorb both light shocks and moderate sustained loads without excessive movement. Rubber-to-metal bonded construction ensures the rubber element remains firmly captive under repeated cycling. The female thread accepts an M8 fastener directly, simplifying installation and permitting secure positive location against the mating surface. At 60 Shore A, the mount works effectively in shear, compression, or a combination of the two, adapting to the loading direction present in a wide variety of machine frames and brackets. With its 79.0 kg capacity and 7.5 mm deflection, this grade suits general-purpose machinery mounting across construction equipment, agricultural equipment, industrial machinery, and commercial vehicles where a controlled, predictable response to mixed shock and vibration is required. The rubber compound improves machinery lifespan, protects surrounding structures, and contributes to operator comfort. Custom options including oil-resistant and high-temperature rubbers, and stainless steel metalwork, are available on request. This buffer is one size within a broader female flat buffer family.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

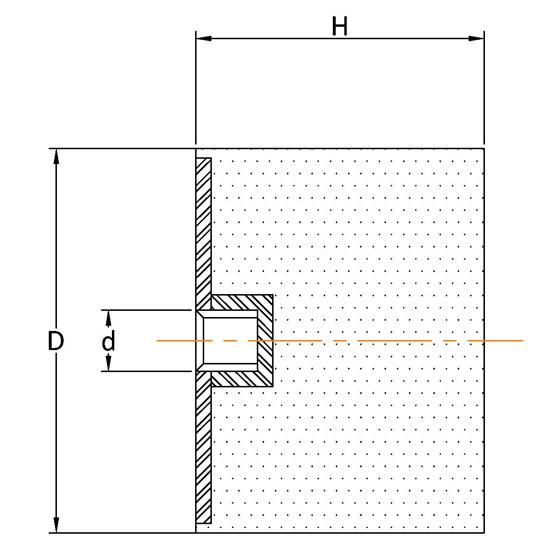

| Rubber Body Dimension (D) | 30mm |
|---|---|
| Height (H) | 30mm |
| Thread Size (V) | M8 |
| Max Load (Kg) | 79 |
| Deflection (mm) | 7.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Male Flat Buffer - Anti-Vibration, Thread Size M8, Max Load 77.5Kg - 3030MFB20-60
£11.18
£10.96
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2530FFB06-70 | 3040MFB20-60 | 3040FFB08-60 | 2530MFB20-70 | 3030MFB20-60 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 30mm | 40mm | 40mm | 30mm | |
| Height | 30mm | ||||
| Size | 25x30mm | 30x40mm | 30x40mm | 25x30mm | 30x30mm |
| Deflection | 7.5 | 10 | 10 | 7.5 | 7.5 |
| Diameter | 25mm | 30mm | 30mm | 25mm | |
| Diameter Range | 11-25mm | 26-50mm | 26-50mm | 11-25mm | |
| Length Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Shore Hardness | 70 | 60 | 60 | 70 | |
| Thread | M6 | M8 | M8 | M8 | M8 |
| Show More | |||||
A. The buffer measures 30 mm diameter by 30 mm height with an M8 female thread. It has a maximum load rating of 79.0 kg and a deflection of 7.5 mm.
A. At 60 Shore A, this is a medium-hardness grade. It provides a balance between vibration isolation and load support, making it suited to general-purpose machinery mounting where both moderate sustained loads and mixed shock inputs are present. Softer grades give greater deflection and better isolation at lower load; harder grades carry higher load with less movement.
A. The buffer is suited to construction equipment, agricultural equipment, industrial machinery, and commercial vehicles. It is appropriate wherever a controlled response to combined shock and vibration is needed across mid-range load conditions.
A. The rubber-to-metal bonded construction absorbs and dissipates energy from impact shocks and vibration. This improves machinery lifespan, protects surrounding structures, and improves operator comfort. The mount can be loaded in shear, compression, or a combination of the two.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. In the 30 x 30 mm M8 size, the 45 Shore A grade (3030FFB08-45) and the 70 Shore A grade (3030FFB08-70) are available. Larger-format female flat buffers in the range include 100100FFB16, 10030FFB16, 10040FFB16, 10050FFB16, 10055FFB16, and 10060FFB16.
