Product Number: 3020MFB20-60

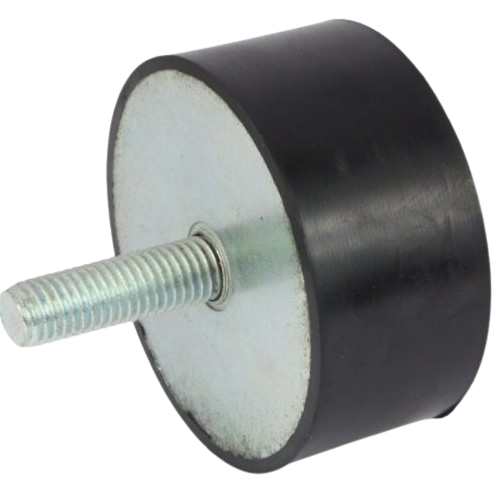

Sitting at the midpoint of the Shore A hardness range, the 3020MFB20-60 Male Flat Buffer is engineered to balance vibration isolation with structural support across a broad spectrum of general-purpose machinery installations. At 30mm diameter and 20mm height, with an M8 x 20mm threaded stud, this medium-grade buffer accepts loads up to 113.5 kg with a controlled deflection of 5.00 mm, a pairing that suits applications where neither excessive compliance nor rigid restraint is appropriate. Rubber-to-metal bonded construction gives the 3020MFB20-60 its characteristic combination of resilience and positional stability. The flat buffer geometry allows direct surface contact, making it equally effective as a bump stop to cushion shock from secondary moving components or as a steady elastic mounting element. Energy absorption and dissipation occur through the rubber body, reducing transmitted force and protecting both machinery and surrounding structures from cyclic stress. This 60 Shore A grade is the natural choice for industrial machinery, agricultural equipment, and commercial vehicles that operate across variable load cycles, environments where a softer grade would offer insufficient support and a firmer grade would sacrifice the isolation needed to protect sensitive sub-assemblies. The male flat buffer format keeps installation straightforward, requiring no special tooling. Beyond the standard specification, custom options including oil-resistant or high-temperature rubbers and stainless steel metal components are available on request. The 3020MFB20-60 is part of a graded Shore A range for this geometry.
Flat buffers are an economical and simple solution to absorbing shock and vibration. They are used mainly in compression and are available with various configurations. Additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

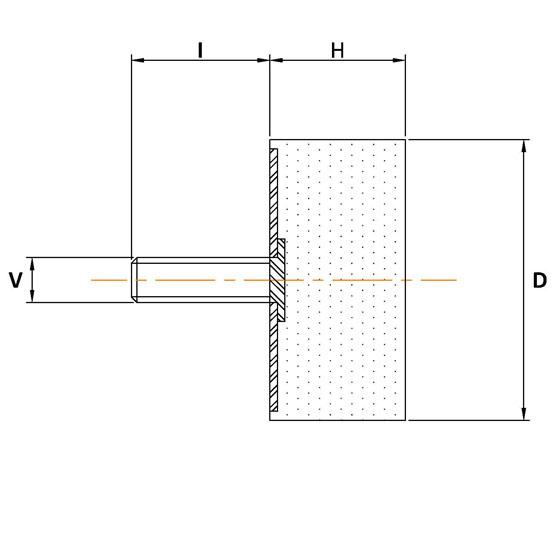

| Rubber Mount Dimension (D) | 30mm |
|---|---|
| Height (H) | 20mm |
| Thread Size (V) | M8 |
| Bolt Length (I) | 20mm |
| Max Load (Kg) | 113.5 |
| Deflection (mm) | 5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Female Flat Buffer - Anti-Vibration, Thread Size M8, Max Load 116Kg - 3020FFB08-N60
£11.00
£10.78
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2508MFB18-45 | 3020FFB06-60 | 3020FFB08-N60 | 3040FFB08-70 | 4030MFB25-45 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 08mm | 20mm | 40mm | 30mm | |
| Height | 20mm | ||||
| Size | 25x08mm | 30x20mm | 30x40mm | 40x30mm | |
| Deflection | 2 | 5 | 5 | 10 | 7.5 |
| Diameter | 25mm | 30mm | 30mm | 40mm | |
| Diameter Range | 11-25mm | 26-50mm | 26-50mm | 26-50mm | |
| Length Range | Up to 10mm | 11-25mm | 26-50mm | 26-50mm | |
| Shore Hardness | 45 | 60 | 70 | 45 | |
| Thread | M6 | M6 | M8 | M8 | M10 |
| Show More | |||||
A. The buffer measures 30mm diameter by 20mm height (D x H), with an M8 x 20mm threaded stud (d x L). Maximum load is 113.5 kg and rated deflection is 5.00 mm.
A. 60 Shore A is a medium hardness. It provides a balance between vibration isolation and load-carrying support — softer grades offer greater deflection at lower loads, while harder grades carry higher loads with less movement. The 60 Shore grade suits general-purpose machinery mounting where both isolation and structural support are required.
A. Male flat buffers of this type are used in construction equipment, industrial machinery, agricultural equipment, elevators, and commercial vehicles. They function either as bump stops cushioning impact from secondary moving components or as elastic mounting elements in direct surface contact.
A. The rubber body absorbs and dissipates impact and vibration energy, reducing the force transmitted to the machine frame and surrounding structures. This helps extend machinery lifespan, protects adjacent components, and can improve operator comfort.
A. The 3020MFB20-60 uses rubber-to-metal bonded construction, which combines the resilience of the rubber element with the positional stability of the metal stud for secure, reliable mounting.
A. Yes. A 45 Shore A version (3020MFB20-45) is available for lighter-duty or higher-isolation applications, and a 70 Shore A version (3020MFB20-70) is available for higher-load or greater-restraint requirements.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubbers, along with additional and custom sizes, are available on request.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
