Product Number: 3020FFB08-N60

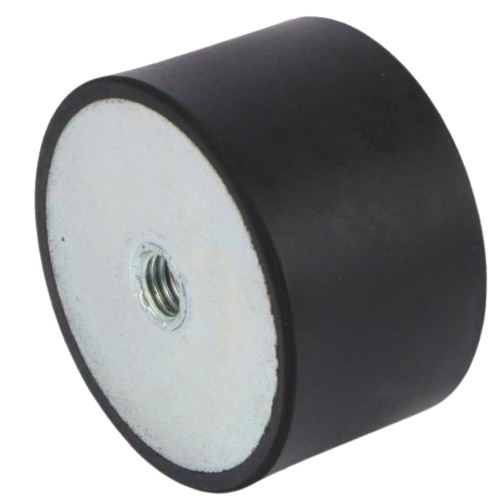

The 3020FFB08-N60 is a 30 x 20 mm female flat buffer rated to 116 kg. Additional sizes, rubber compounds and stainless steel metals are available on request.
Used as a buffer or bump stop, it absorbs impact and vibration where equipment or structures meet. Fixing is by a female M8 thread, leaving the working face plain; the rubber body measures 30 mm across and 20 mm high. Rated load is 116 kg at 5 mm deflection. Buffers of this kind protect equipment and structures at the point of impact - typical duties include bump stops on vehicles, plant and industrial machinery. The family serves as bump stops and impact cushions across vehicles, generating sets and industrial machinery. Zinc-plated metals give corrosion resistance as standard, and additional sizes, compounds and stainless steel metals are produced on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

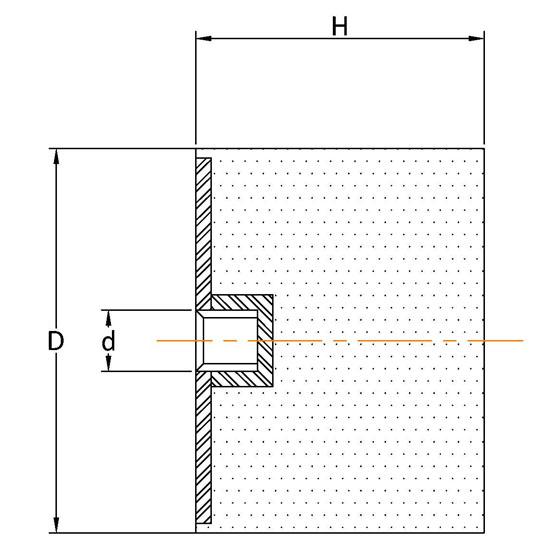

| Rubber Body Dimension (D) | 30mm |
|---|---|
| Height (H) | 20mm |
| Thread Size (V) | M8 |
| Max Load (Kg) | 116 |
| Deflection (mm) | 5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Male Flat Buffer - Anti-Vibration, Thread Size M8, Max Load 113.5Kg - 3020MFB20-60
£11.00
£10.78
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3020FFB06-60 | 4030MFB25-45 | 2508MFB18-45 | 3020MFB20-60 | 3025FFB08-70 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 20mm | 30mm | 08mm | 25mm | |
| Height | 20mm | ||||
| Size | 30x20mm | 40x30mm | 25x08mm | 30x20mm | 30x25mm |
| Deflection | 5 | 7.5 | 2 | 5 | 6.25 |
| Diameter | 30mm | 40mm | 25mm | 30mm | |
| Diameter Range | 26-50mm | 26-50mm | 11-25mm | 26-50mm | |
| Length Range | 11-25mm | 26-50mm | Up to 10mm | 11-25mm | |
| Shore Hardness | 60 | 45 | 45 | 70 | |
| Thread | M6 | M10 | M6 | M8 | M8 |
| Show More | |||||
A. Fit is by dimensions - a 30 mm body, 20 mm height and M8 fixing. Match those against your application, search PartsForMachines by the AV part number, or WhatsApp our team to check before ordering.
A. 116 kg maximum at 5 mm deflection.
A. The fixing - a male buffer carries a stud, a female buffer a threaded insert. This 3020FFB08-N60 is the female version with M8.
