Where vibration isolation takes priority over load restraint, the 3022MFB20-45 Male Flat Buffer delivers a soft 45 Shore A rubber element sized at 30 mm diameter by 22 mm height, with an M8 x 20 mm male thread and a rated maximum load of 69.0 kg. At this hardness grade, the rubber yields up to 5.50 mm of deflection under load, the greatest movement in the 3022 flat-buffer range. Making it the right choice for lighter, compact or sensitive installations where lower-frequency vibration isolation is the governing requirement rather than high-load restraint. Constructed using rubber-to-metal bonding, the buffer combines a steel threaded stud with a moulded natural rubber pad that absorbs and dissipates shock energy rather than transmitting it to surrounding structures. The flat-buffer geometry offers a low-cost solution for cushioning against impact from secondary moving components or for use as a direct-contact elastic element against a surface. Installation is straightforward: the single male thread fastens directly into the mating threaded bore of the host equipment without additional hardware. With a softer durometer promoting maximum deflection at moderate loads, this buffer suits sensitive instruments, precision machinery, agricultural equipment, commercial vehicles, and lighter industrial plant where operator comfort and protection of surrounding structures are priorities. It is equally applicable across marine, power generation, and construction settings where ground-borne or machine-generated vibration must be attenuated without the high-stiffness response of firmer grades. Mounts of this type may be loaded in compression, shear, or a combination of both.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 45 |
|---|---|
| Body diameter D (mm) | 30 |
| Overall height H (mm) | 22 |
| Stud thread d | M8 |
| Stud length L (mm) | 20 |
| Max load (kg) | 69 |
| Deflection (mm) | 5.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

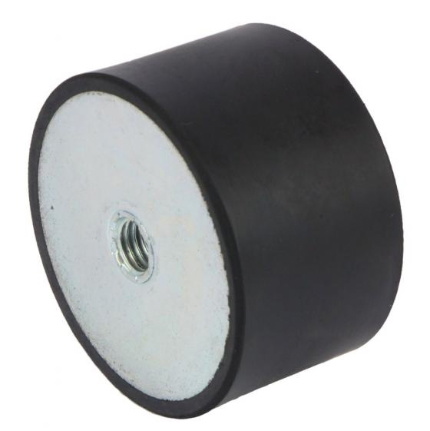

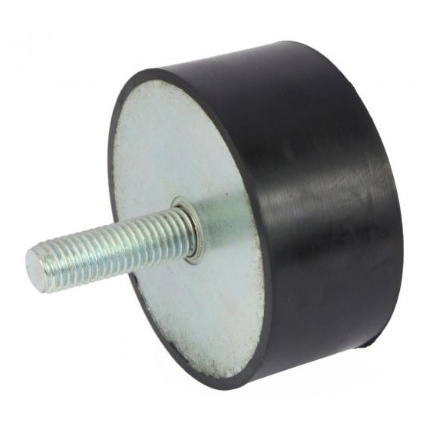

| PRODUCT NUMBER | 2515FFB06-45 | 2518MFB18-45 | 2005MFB20-60 | 2008MFB12-60 | 2008MFB18-60 |
| Type | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer | Flat Buffer |
| Length | 15mm | 18mm | 08mm | ||
| Height | 5mm | 8mm | |||
| Size | 25x15mm | 25x18mm | 20x08mm | ||
| Deflection | 3.75 | 4.25 | 2 | 2 | 2 |
| Diameter | 25mm | 25mm | 20mm | ||
| Diameter Range | 11-25mm | 11-25mm | 11-25mm | ||
| Length Range | 11-25mm | 11-25mm | Up to 10mm | ||
| Shore Hardness | 45 | 45 | 60 | ||
| Thread | M6 | M6 | M5 | M6 | M6 |
| Show More | |||||
A. The buffer has an outer diameter of 30 mm and a height of 22 mm, with an M8 x 20 mm male threaded stud. It is rated to a maximum load of 69.0 kg with a deflection of 5.50 mm at that load.
A. The 45 Shore A compound is the softest grade in the 3022 flat-buffer range. Softer rubber gives greater deflection — up to 5.50 mm — and better vibration isolation at lower loads. It is the preferred choice where isolation efficiency matters more than high-load stiffness, such as on sensitive or lighter equipment.
A. Source applications include construction equipment, industrial machinery, agricultural equipment, elevators, and commercial vehicles. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. The rubber-to-metal bonded construction allows the natural rubber element to deflect under load, absorbing and dissipating the energy from impact shocks or vibration rather than transmitting it to surrounding structures or the operator.
A. Male flat buffers of this type may be loaded in compression, shear, or a combination of both, depending on the installation requirement.
A. Yes. The same 30 x 22 mm body is available in 60 Shore A (3022MFB20-60) and 70 Shore A (3022MFB20-70). Custom configurations including stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request.
