Product Number: 3540MCB23-60

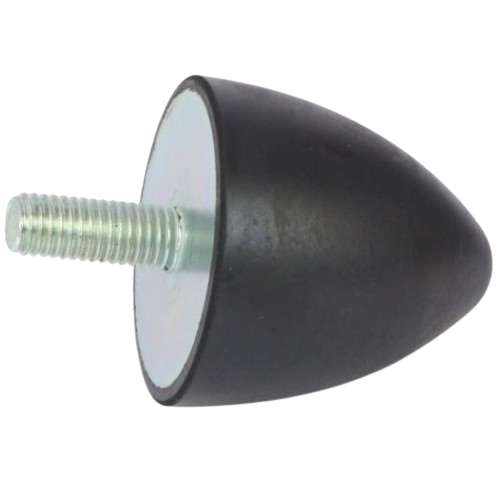

Balancing isolation performance with structural support, this 35 x 40 mm conical buffer with an M8 x 23 mm male stud is rated to a maximum load of 30.6 kg with 10.0 mm of controlled deflection, figures that position it firmly in the mid-range of the conical buffer family and suit it to the broad middle ground of machinery mounting applications. The 60 Shore A rubber hardness grade delivers a measured equilibrium between compliance and resistance, making it a practical choice wherever neither maximum softness nor maximum rigidity is appropriate. Constructed with rubber bonded directly to metal, the buffer cushions machinery against impact shocks from external moving components, absorbing and dissipating energy rather than transmitting it. This rubber-to-metal bonded construction provides consistent response under combined loading, whether the mount is subjected to compressive force, shear, or a combination of both. And helps to extend machinery lifespan while protecting surrounding structures and improving operator comfort. The conical geometry serves dual roles: shock and vibration absorption as a secondary buffer, or primary and secondary suspension on industrial vehicles. At 60 Shore A, the mount suits general-purpose installations across agriculture, power generation, marine applications, and commercial vehicles, environments where moderate dynamic loads are present and reliable energy dissipation is required without the high compliance of a softer grade or the stiffness associated with firmer variants. This product is the 60 Shore A variant within the 35 x 40 mm M8 stud conical buffer range.
The AV Industrial Products range of Conical Buffers (also known as Parabolic Buffers) are the ideal product for absorbing high levels of vibration and shock. The innovative design of these mountings provides a progressive stiffness, so that under extreme levels of deformation, the energy of the shock is absorbed gradually, and the equipment is protected.
The Parabolic Dampers comes in various configurations, additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

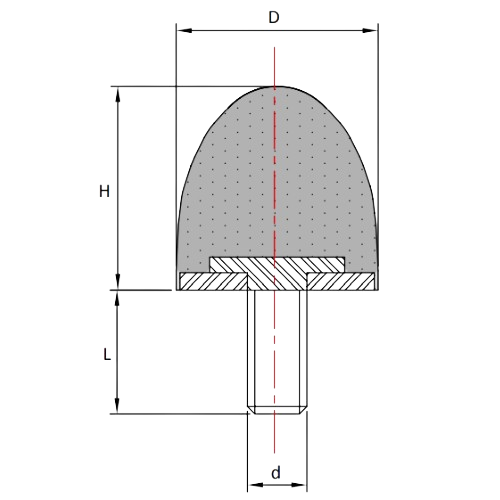

| Rubber Body Dimension (D) | 35mm |
|---|---|
| Height (H) | 40mm |
| Thread Size (V) | M8 |
| Bolt Length (I) | 23mm |
| Max Load (kg) | 54 |
| Deflection (mm) | 7.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3030MCB20-60 | 3030MCB14-60 | 2515MCB25-60 | 2425MCB18-60 | 2514MCB20-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 25mm | 14mm | |||
| Height | 30mm | 30mm | 15mm | ||
| Size | 30x30mm | 24x25mm | 25x14mm | ||
| Deflection | 7.5mm | 7.5mm | 3.5mm | 6.25 | 3.5 |
| Diameter | 24mm | 25mm | |||
| Diameter Range | 11-25mm | 11-25mm | |||
| Length Range | 11-25mm | 11-25mm | |||
| Shore Hardness | 60 | 60 | |||
| Thread | M6 | M6 | M6 | M6 | M8 |
| Show More | |||||
A. The buffer measures 35 mm diameter by 40 mm height, with an M8 x 23 mm male stud. It is rated to a maximum load of 30.6 kg with a deflection of 10.0 mm.
A. At 60 Shore A, the rubber sits in the middle of the hardness range. Softer grades provide greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement. The 60 Shore A grade offers a balance of isolation and support, suited to general-purpose machinery mounting across a broad range of moderate dynamic loads.
A. The buffer is suited to general-purpose mounting in agriculture, power generation, marine, commercial vehicle, and industrial machinery applications — anywhere a balanced combination of vibration isolation and load-bearing support is needed under moderate dynamic conditions.
A. The rubber-to-metal bonded construction absorbs and dissipates energy from impact shocks and vibration caused by external moving components. It can be loaded in compression, shear, or a combination, protecting surrounding structures, extending machinery lifespan, and improving operator comfort.
A. Yes. The 35 x 40 mm M8 range includes a 45 Shore A grade (3540MCB23-45) for greater deflection and softer isolation, and a 70 Shore A grade (3540MCB23-70) for higher load capacity and reduced movement. Larger conical buffer formats are also available under SKUs 100100MCB31, 100120MCB31, 10095MCB31, 1010MCB12, 11877MCB41, and 2015MCB10.
A. Yes. Stainless steel metalwork, oil-resistant rubber, high-temperature rubber compounds, and additional custom sizes are available on request.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
