Product Number: 3030MCB14-60

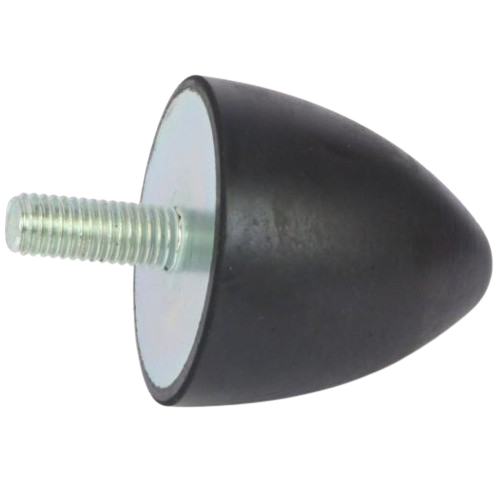

Balancing isolation performance with adequate load-bearing support, the 3030MCB14-60 is a 30 x 30 mm conical rubber buffer fitted with an M6 x 14 mm male stud, rated to a maximum load of 54.0 kg with a deflection of 7.5 mm. Its 60 Shore A medium hardness places it squarely in the mid-range of the conical buffer family, making it a reliable general-purpose choice wherever a mount must manage both vibration isolation and moderate structural loading simultaneously. Constructed with rubber-to-metal bonded technology, this buffer absorbs and dissipates energy from impact shocks and vibration transmitted by external moving components. The medium hardness grade provides a measured deflection characteristic, firm enough to maintain positional stability under moderate load, yet compliant enough to attenuate vibration effectively across a broad range of operating conditions. Custom variants in stainless steel metal and oil-resistant or high-temperature rubbers are available on request for demanding environments. The 3030MCB14-60 is well suited to general industrial machinery mounting, agricultural equipment, commercial vehicles, and construction equipment where loads fall within the mid-range and consistent isolation is required alongside reliable mechanical support. It is equally applicable to elevators, power generation equipment, and marine installations where a balanced mount characteristic is preferred over the greater compliance of a softer grade or the high stiffness of a firmer grade. It also serves secondary suspension duties on industrial vehicles. This buffer is part of a wider conical buffer range.
The AV Industrial Products range of Conical Buffers (also known as Parabolic Buffers) are the ideal product for absorbing high levels of vibration and shock. The innovative design of these mountings provides a progressive stiffness, so that under extreme levels of deformation, the energy of the shock is absorbed gradually, and the equipment is protected.
The Parabolic Dampers comes in various configurations, additional sizes, rubber compounds and stainless-steel metals are all available on request.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

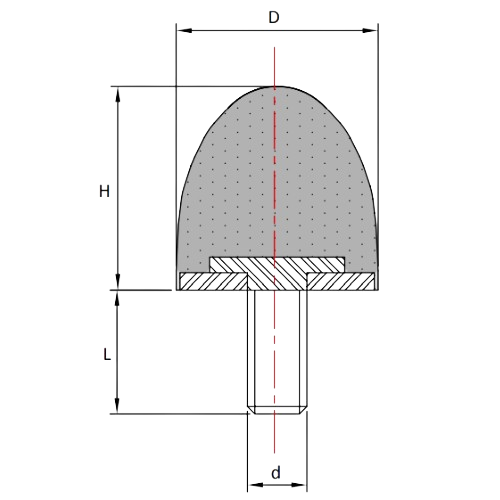

| Rubber Body Dimension (D) | 30mm |
|---|---|
| Height (H) | 30mm |
| Thread Size (V) | M6 |
| Bolt Length (I) | 14mm |
| Max Load (kg) | 54 |
| Deflection (mm) | 7.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3540MCB23-60 | 2520MCB18-60 | 2515MCB25-60 | 2425MCB18-60 | 2514MCB20-60 |
| Type | Buffer | Buffer | Buffer | Buffer | Buffer |
| Length | 25mm | 14mm | |||
| Height | 40mm | 20mm | 15mm | ||
| Size | 35x40mm | 24x25mm | 25x14mm | ||
| Deflection | 7.5mm | 3.5mm | 3.5mm | 6.25 | 3.5 |
| Diameter | 24mm | 25mm | |||
| Diameter Range | 11-25mm | 11-25mm | |||
| Length Range | 11-25mm | 11-25mm | |||
| Shore Hardness | 60 | 60 | |||
| Thread | M8 | M8 | M6 | M6 | M8 |
| Show More | |||||
A. The buffer measures 30 mm diameter by 30 mm height with an M6 x 14 mm male stud. It has a maximum load rating of 54.0 kg and a deflection of 7.5 mm.
A. This buffer is rated at 60 Shore A, a medium hardness. Softer grades provide greater deflection and better isolation at lower loads; harder grades carry higher loads with less movement. The 60 Shore A grade balances load-bearing support with effective vibration isolation across a broad range of applications.
A. It is suited to general industrial machinery, agricultural equipment, commercial vehicles, construction equipment, elevators, power generation equipment, and marine installations. It is also used for secondary suspension on industrial vehicles.
A. The rubber-to-metal bonded construction absorbs and dissipates energy from impact shocks and vibration generated by external moving components. The buffer may be loaded in shear, compression, or a combination of both, cushioning machinery, protecting surrounding structures, and improving operator comfort.
A. Yes. The 30 x 30 mm M6 format is also available in 45 Shore A (3030MCB14-45) and 70 Shore A (3030MCB14-70). The wider range includes larger formats (100100MCB31, 100120MCB31, 10095MCB31, 11877MCB41) and smaller formats (1010MCB12, 2015MCB10).
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
