Product Number: 5545WMM28
Variations

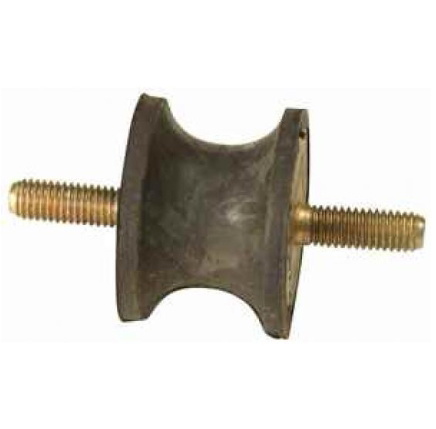

Engineered for heavier loading and shock-duty applications, the 5545WMM28 is a 55mm waisted male-male bobbin mount with an M8 thread and an overall height of 45mm, built to absorb vibration and mechanical shock across demanding industrial and commercial environments. With a 55mm outer diameter (D1), 44mm waist diameter (D2), and a 28mm thread stud length (L), this upper-range mount sits among the larger configurations in the waisted bobbin family and is suited where loads and shock inputs exceed the capacity of smaller variants. The rubber-to-metal bonded construction allows the mount to be loaded in shear, compression, or a combination of both, giving designers and maintenance engineers flexibility in how they orient and specify the mount for a given application. The waisted profile itself enhances deflection characteristics in shear, making this geometry effective where multi-axis movement control is required alongside load-bearing duty. Custom metal options in stainless steel, and rubber compounds with oil-resistant or high-temperature properties, are available on request for environments where the standard specification is insufficient. This mount is well suited to generator sets, diesel engines, industrial machinery, and heavy plant equipment where vibration reduction protects both the host machine and surrounding structures, and where operator comfort is a consideration. It is also applied across power generation, construction and off-highway, marine, agricultural, and railway industries. Load capacity across the waisted bobbin range extends from approximately 1 kg to 2,000 kg per mounting point. The waisted bobbin range is available in numerous sizes and thread configurations.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 100100FF16-45 | 0808MM06-45 | 0808MM06-70 | 0808MM06-60 | 0806MF10-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 100mm | 08mm | 08mm | ||
| Height | 8mm | 6mm | |||
| Size | 100x100mm | 08x08mm | 08x08mm | 8x8mm | |
| Deflection | 9.2 | 0.6 | 0.6 | 6 | NA |
| Diameter | 100mm | 08mm | 08mm | ||
| Diameter Range | 51-100mm | Up to 10mm | Up to 10mm | ||
| Length Range | 51-100mm | Up to 10mm | Up to 10mm | ||
| Mount Dimension | 8mm | 8mm | |||
| Shore Hardness | 45 | 45 | 70 | ||
| Thread | M16 | M3 | M3 | M3 | M3 |
| Show More | |||||
A. The mount has an outer diameter (D1) of 55mm, a waist diameter (D2) of 44mm, an overall height (H) of 45mm, an M8 thread (d), and a stud length (L) of 28mm.
A. The 5545WMM28 can be loaded in shear, compression, or a combination of both, allowing flexibility in mounting configuration to suit the application.
A. This upper-range waisted bobbin mount is suited to generator sets, diesel engines, industrial machinery and equipment, and heavy plant. It serves industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. The range supports loads from approximately 1 kg up to 2,000 kg per mounting point, with this 55mm variant positioned in the heavier, high-load portion of the range.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Sibling variants include the 1008WMM06, 1010WMM10, 1214WMM10, 15/12/15WMM10, 15/12/15WMM12, 15/8.5/15WMM10, 180/148/75WMM34, and 180/150/75WMM45, covering a broad spread of thread sizes and load capacities.
A. The rubber-to-metal bonded, waisted construction reduces transmitted vibration and shock, which improves machinery lifespan, protects surrounding structures, and improves operator comfort.
