Product Number: PR262222-60

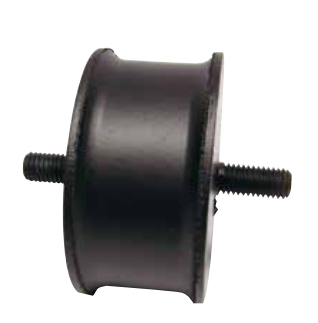

Balancing isolation performance with load-bearing capacity, the PR262222-60 is a 26mm profiled bobbin anti-vibration mount rated to a maximum load of 13 kg per mounting. At 60 Shore A, this medium-hardness grade occupies the broad middle ground of the profiled bobbin range, offering a measured combination of deflection compliance and structural support that suits a wide variety of general-purpose machinery installations. Constructed with rubber-to-metal bonded technology, the mount delivers effective attenuation of vibration and shock whilst resisting the movement associated with softer grades. The M8 threaded male-male configuration (D1: 26 mm, D2: 22 mm, H: 22 mm, thread types M8x10 and M8x18) provides a secure, practical fastening arrangement. The medium rubber hardness produces greater isolation than firm variants whilst maintaining better positional control than the softest grade, making this mount well suited to installations where both isolation quality and moderate support matter. The 60 Shore A grade performs in shear, compression or a combination of both loading modes, and is appropriate for a broad application set including industrial machinery and equipment, generator sets, instruments, air-conditioning units, and exhaust mountings. Industries served include power generation, agriculture, marine, automotive, and construction and off-highway. Where the operating environment demands enhanced materials, stainless steel metal components and oil-resistant or high-temperature rubbers are available on request. This mount is the smallest in the profiled bobbin family. Softer and firmer 26 mm variants are available as PR262222-45 and PR262222-70. Larger profiles in the range include PR1009555, PR1009575, PR403528, PR464025, and PR757040.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 60 |
|---|---|
| Diameter / thread d1 (mm) | 26 |
| Diameter / thread d2 (mm) | 22 |
| Overall height H (mm) | 22 |
| Type d1 | M8x10 |
| 1 d1 | M8x18 |
| 2 d2 | M8 |
| Type d2 | M8 |
| 3 d2 | M8 |
| Max load (kg) | 13 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2020MM18-60 | 2525FF06-45 | 2525FF08-45 | 2525MF15-45 | 2525MF18-45 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 25mm | 25mm | 25mm | ||
| Height | 20mm | 25mm | |||
| Size | 20x20mm | 25x25mm | 25x25mm | 25x25mm | |
| Deflection | 1.6 | 2.1 | 2.1 | 2.1 | 2.1 |
| Diameter | 25mm | 25mm | 25mm | ||
| Diameter Range | 11-25mm | 11-25mm | 11-25mm | ||
| Length Range | 11-25mm | 11-25mm | 11-25mm | ||
| Mount Dimension | 20mm | 25mm | |||
| Shore Hardness | 45 | 45 | 45 | ||
| Thread | M6 | M6 | M8 | M8 | M6 |
| Show More | |||||
A. The PR262222-60 has an outer diameter (D1) of 26 mm, a base diameter (D2) of 22 mm, and a height (H) of 22 mm. The upper thread is M8x10 and the lower thread is M8x18; both connections are M8.
A. The PR262222-60 is rated to a maximum load of 13 kg per mounting.
A. At 60 Shore A this is a medium-hardness grade, positioned between the softer 45 Shore A and firmer 70 Shore A variants. It provides a balance of vibration and shock isolation alongside moderate load support, making it suitable for general-purpose machinery mounting where neither maximum deflection nor maximum rigidity is required.
A. The PR262222-60 may be loaded in shear, compression, or a combination of both, giving flexibility in how it is oriented within an installation.
A. Source-confirmed applications include industrial machinery and equipment, generator sets, instruments, air-conditioning units, and exhaust mountings. Relevant industry sectors include power generation, agriculture, marine, automotive, construction and off-highway, and railway and mass transit.
A. Yes. The same 26 mm geometry is available in 45 Shore A (PR262222-45) and 70 Shore A (PR262222-70). Larger profiled bobbin mounts in the family include PR1009555, PR1009575, PR403528, PR464025, and PR757040.
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
