Product Number: 2525MF15-45

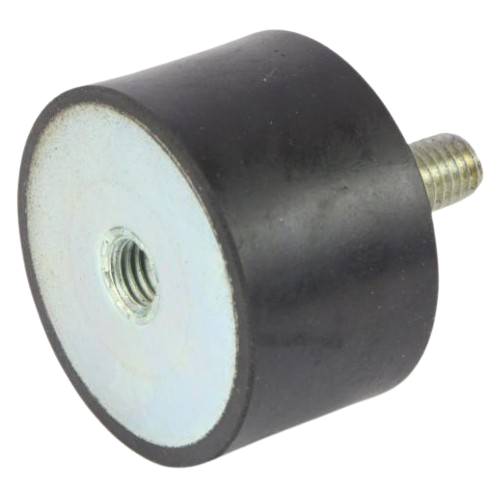

The 2525MF15-45 is a 25 x 25 mm male-female bobbin mount in 45 Shore rubber, rated to 12.8 kg. It is a low-cost route to cutting vibration and shock on general-purpose industrial equipment.
Loading can be in compression, in shear, or a combination of both, and different thread variations are produced across the range. This size carries a male stud one end and a female thread the other, for applications where a bolt fixing is required: M8 thread with a 15 mm stud, on a 25 mm diameter body 25 mm high. Maximum load is 12.8 kg at 2.1 mm deflection. Stainless steel metals and oil-resistant or high-temperature rubber compounds are available on request.
This size is offered in this grade; neighbouring sizes in the range cover lighter and heavier duties.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

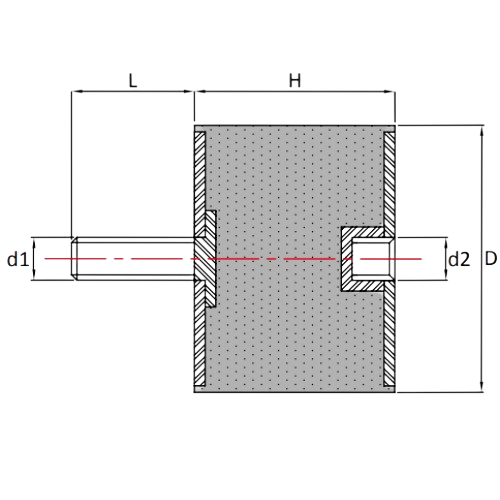

| Mount Dimension (D) | 25mm |
|---|---|
| Height (H) | 25mm |
| Thread size (V) | M8 |
| Bolt Length (I) | 15mm |
| Max Load (Kg) | 12.8 |
| Deflection (mm) | 2.1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2020MM18-60 | 2525MF18-45 | 2525FF06-45 | 2525FF08-45 | PR262222-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 25mm | 25mm | 25mm | ||
| Height | 20mm | ||||
| Size | 20x20mm | 25x25mm | 25x25mm | 25x25mm | 26mm |
| Deflection | 1.6 | 2.1 | 2.1 | 2.1 | |
| Diameter | 25mm | 25mm | 25mm | ||
| Diameter Range | 11-25mm | 11-25mm | 11-25mm | ||
| Length Range | 11-25mm | 11-25mm | 11-25mm | ||
| Mount Dimension | 20mm | ||||
| Shore Hardness | 45 | 45 | 45 | 60 | |
| Size Range | 26-50mm | ||||
| Thread | M6 | M6 | M6 | M8 | M8 |
| Show More | |||||
A. Fit is dimensional rather than machine-specific - match a 25 mm diameter body, 25 mm height and M8 thread against your equipment. Search PartsForMachines by the AV part number or these dimensions, or WhatsApp our team to confirm suitability.
A. 12.8 kg maximum at 2.1 mm deflection.
A. Yes - bobbin mounts can be used in shear or compression or a combination of both; they should not be put into tension.
