Product Number: PR1009575-70
Engineered for heavy-load and shock-duty applications, PR1009575-70 is a 100mm profiled bobbin mount rated to a maximum load of 525 kg per mounting, the highest capacity in the 100mm profiled bobbin family. At 70 Shore A, the rubber delivers firm resistance with minimal deflection under load, making this the correct specification where structural restraint, impact absorption and positional stability take precedence over maximum vibration isolation. The outer diameter measures 100 mm (D1), the secondary diameter 95 mm (D2), and the overall height 75 mm (H), with an M16x45 stud on the primary face and an M16 thread on the secondary face. The rubber-to-metal bonded construction gives dependable load transfer across the mount body, and because the mount is usable in shear, compression or a combination of both, it can be orientated to suit the dominant load direction in service. The firmer compound is particularly well suited to generator sets running under variable electrical demand, diesel engines subject to torque impulse, and exhaust mounting systems exposed to sustained vibration and thermal cycling. Heavier industrial machinery and construction or off-highway equipment, where mounting points must resist shock loads and hold alignment, are equally appropriate duties for this grade. The mount is part of a graded family spanning 45 Shore A through 70 Shore A; softer grades provide greater deflection and better isolation for lighter or more vibration-sensitive loads.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Diameter / thread d1 (mm) | 100 |
| Diameter / thread d2 (mm) | 95 |
| Overall height H (mm) | 75 |
| Type d1 | M16x45 |
| 1 d1 | M16x45 |
| 2 d2 | M16 |
| Type d2 | M16 |
| 3 d2 | M16 |
| Max load (kg) | 525 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Male Bobbin Range, M14, Max Load 512Kg - 8030MM35-60
£18.21
£17.85
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|

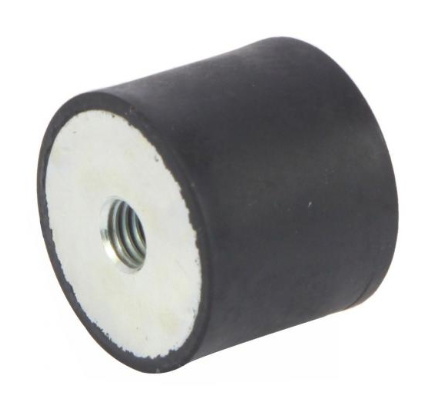

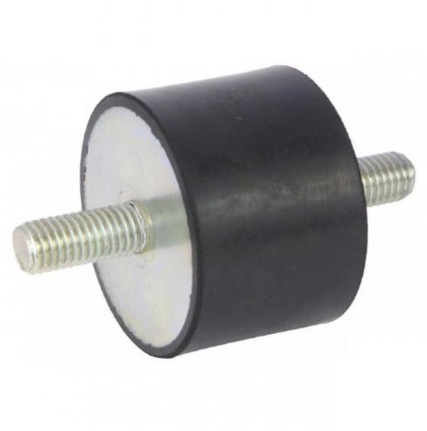

| PRODUCT NUMBER | 10050MM44-60 | 10075MM44-70 | 10055FF16-60 | 10055MF44-60 | 8030MM35-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 50mm | 75mm | 55mm | 55mm | |
| Height | 30mm | ||||
| Size | 100x50mm | 100x75mm | 100x55mm | 100x55mm | 80x30mm |
| Deflection | 4.2 | 6.7 | 4.7 | 4.7 | 2.4 |
| Diameter | 100mm | 100mm | 100mm | 100mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 26-50mm | 51-100mm | 51-100mm | 51-100mm | |
| Mount Dimension | 80mm | ||||
| Shore Hardness | 60 | 70 | 60 | 60 | |
| Thread | M16 | M16 | M16 | M16 | M14 |
| Show More | |||||
A. The PR1009575-70 is rated to a maximum load of 525 kg per mounting point.
A. The primary outer diameter (D1) is 100 mm, the secondary diameter (D2) is 95 mm, and the overall height (H) is 75 mm. The primary thread is M16x45 and the secondary thread is M16.
A. The mount can be loaded in shear, compression or a combination of both, allowing it to be orientated to suit the dominant load direction in the application.
A. At 70 Shore A, this mount is designed for heavier loads and shock or impact duty. Typical applications include generator sets, diesel engines subject to torque impulse, exhaust mounting systems, heavy industrial machinery and construction or off-highway equipment where positional stability and restraint under shock loads are the priority.
A. Harder grades carry higher loads with less movement, making the 70 Shore A the correct choice where firm restraint and high load capacity are needed. Softer grades — 45 Shore A (PR1009575-45) and 60 Shore A (PR1009575-60) — provide greater deflection and better vibration isolation for lighter or more vibration-sensitive duties.
A. Yes. Related profiled bobbin variants include PR1009575-45, PR1009575-60, PR1009555, PR262222, PR403528, PR464025 and PR757040. Custom sizes, stainless steel metalwork and oil-resistant or high-temperature rubber compounds are also available on request.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
