Product Number: 8030MM35-60
Carrying a maximum load of 512.0 kg per mounting with a controlled deflection of just 2.4 mm, the 80 x 30 mm male-male bobbin mount in 60 Shore A rubber occupies the broad middle ground of the range, suited to plant and machinery where both adequate isolation and structural support are required in equal measure. Thread stud configuration is M14 x 35 mm at both ends, making fitment straightforward across a wide spread of industrial and mobile applications. SKU 8030MM35-60 is the 60 Shore A variant of this body size, positioning it as the balanced-duty choice within the 80 x 30 mm family. At 60 Shore A, the rubber compound offers a working compromise between the greater deflection and enhanced isolation of softer grades and the high-load rigidity of firmer options. This medium hardness is well suited to machinery that generates moderate to substantial vibration loads yet still demands a degree of movement attenuation, generator sets, industrial equipment, and power units where continuous operation makes operator comfort and structural protection equally important. The rubber-to-metal bonded construction maintains integrity across the full range of shear, compression and combined loading modes, and the family source confirms availability of oil-resistant and high-temperature rubber compounds as well as stainless steel metal components on request. Applications confirmed by source include air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and general industrial machinery and equipment, spanning industries from agriculture and power generation to marine, automotive, construction and off-highway, and railway and mass transit.
Male Male Bobbins- also known as Type A Bobbins or Type 1 Bobbins. Low-cost Anti-Vibration solution for reducing vibration & shock. They can be used in either Shear or Compression or a combination and are available with various thread configurations. Additional Sizes are available, Plus Stainless-Steel metals and Oil Resistant / High Temperature rubbers available on request.
Applications include - General Purpose mountings, where a Male / Male Fixing is preferred. Popular in a wide range of applications & industries including Air Conditioning Units, Exhaust Mountings, Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment. Weight ranges from 1kg to 2000Kg per mounting.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 80mm |
|---|---|
| Height (H) | 30mm |
| Thread Size (V) | M14 |
| Bolt Length (L) | 35mm |
| Max Load (Kg) | 512 |
| Deflection (mm) | 2.4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Male Bobbin Range, M16, Max Load 500Kg - 10055MM44-60
£38.70
£37.94
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|

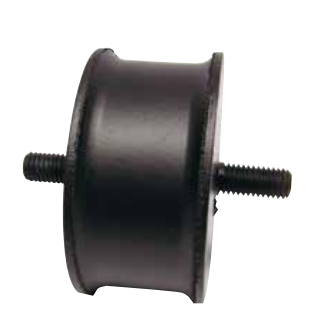

| PRODUCT NUMBER | 10055MF44-60 | 15055MF41-45 | 10055FF16-60 | 10055MM44-60 | PR1009555-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 55mm | 55mm | 55mm | ||
| Height | 55mm | ||||
| Size | 100x55mm | 150x55mm | 100x55mm | 100x55mm | 100mm |
| Deflection | 4.7 | 4.7 | 4.7 | 4.7 | |
| Diameter | 100mm | 150mm | 100mm | ||
| Diameter Range | 51-100mm | 101-200mm | 51-100mm | ||
| Length Range | 51-100mm | 51-100mm | 51-100mm | ||
| Mount Dimension | 100mm | ||||
| Shore Hardness | 60 | 45 | 60 | 60 | |
| Size Range | 51-100mm | ||||
| Thread | M16 | M16 | M16 | M16 | M16 |
| Show More | |||||
A. This mount has a maximum load rating of 512.0 kg and a deflection of 2.4 mm, as specified in the product data.
A. Shore A hardness indicates the rubber compound's firmness. At 60 Shore A, this mount sits in the medium range — offering a balance between the greater deflection and isolation of softer grades and the higher load resistance of harder grades, making it appropriate for general-purpose machinery mounting where both support and vibration attenuation are needed.
A. Both studs are M14 with a length of 35 mm, as confirmed in the product specification.
A. The outer diameter is 80 mm and the height is 30 mm (D x H: 80 x 30 mm).
A. Source-confirmed applications include air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and general industrial machinery and equipment. Industries served include agriculture, power generation, marine, automotive, construction and off-highway, and railway and mass transit.
A. Yes — male-male bobbin mounts of this type may be loaded in shear, compression, or a combination of both, giving flexibility in mounting orientation.
A. Yes — the 80 x 30 mm male-male bobbin is also available in 45 Shore A (SKU 8030MM35-45) and 70 Shore A (SKU 8030MM35-70). Softer grades provide greater deflection and better isolation at lower loads; firmer grades carry higher loads with less movement.
A. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, alongside additional and custom sizes.
