Product Number: 7550MF37-70
Variations
Rated at a maximum load of 381.0 kg with a controlled deflection of just 4.4 mm, the 7550MF37-70 is a 75 x 50 mm male-female bobbin mount engineered for heavy-duty applications where minimal movement and firm positional restraint are the governing requirements. The M12 x 37 male stud and M12 female thread provide a secure, through-fastened connection suited to installations subject to sustained high loads, shock inputs or impact loading. Constructed with rubber-to-metal bonded technology, the 70 Shore A rubber compound delivers the stiffness necessary to resist displacement under heavy load whilst absorbing shock energy before it propagates into adjacent structures. At this hardness grade the mount prioritises load-carrying capacity and restraint over maximum deflection, making it the appropriate selection when mounting mass or operational forces approach the upper end of the bobbin range. The geometry may be loaded in shear, compression or a combination of both, and the bonded construction protects surrounding structures whilst extending machinery service life and improving operator comfort. Typical high-load applications for this mount include diesel engines and generator sets, heavy industrial machinery and equipment, agricultural plant, marine installations and construction or off-highway vehicles, environments where shock and vibration forces are significant and positional control of the mounted assembly is critical. Industries served by this mount family include power generation, railway and mass transit, automotive, military and defence, and construction and off-highway sectors.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 75 |
| Overall height H (mm) | 50 |
| Stud thread d1 | M12 |
| Stud length L (mm) | 37 |
| Diameter / thread d2 (mm) | M12 |
| Max load (kg) | 381 |
| Deflection (mm) | 4.4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

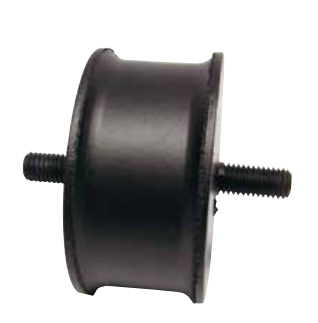

| PRODUCT NUMBER | 7540MM37-70 | 7040FF10-70 | 10040FF16-45 | 10075MM44-60 | PR1009575-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 40mm | 40mm | 40mm | 75mm | |
| Size | 75x40mm | 70x40mm | 100x40mm | 100x75mm | 100mm |
| Deflection | 3.4 | 3.4 | 3.2 | 6.7 | |
| Diameter | 75mm | 70mm | 100mm | 100mm | |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | |
| Length Range | 26-50mm | 26-50mm | 26-50mm | 51-100mm | |
| Shore Hardness | 70 | 70 | 45 | 60 | 60 |
| Size Range | 51-100mm | ||||
| Thread | M12 | M10 | M16 | M16 | M16 |
| Show More | |||||
A. This mount has a maximum load rating of 381.0 kg and a controlled deflection of 4.4 mm, reflecting the firm 70 Shore A rubber compound used in this variant.
A. The male stud is M12 x 37 mm in length (d1 x L) and the female thread is M12 (d2), providing a secure connection at both ends of the mount.
A. The mount measures 75 mm in diameter and 50 mm in height (D x H: 75 x 50 mm).
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is orientated within an installation.
A. The firm 70 Shore A grade is well-suited to diesel engines, generator sets, heavy industrial machinery, agricultural plant, marine installations, and construction and off-highway vehicles — anywhere high loads, shock forces, or positional restraint are critical requirements. Industries served include power generation, automotive, railway and mass transit, military and defence, and construction and off-highway.
A. Harder rubber grades carry higher loads with less deflection and movement. The 70 Shore A grade is the upper-range option in the 75 x 50 mm family, prioritising maximum load capacity and firm restraint. Where greater deflection and better vibration isolation at lower loads are needed, the 45 Shore A (7550MF37-45) or 60 Shore A (7550MF37-60) variants are available.
A. Yes. Stainless steel metal parts, oil-resistant rubbers, high-temperature rubber compounds, and additional or custom sizes are available on request.
