Product Number: PR1009575-60

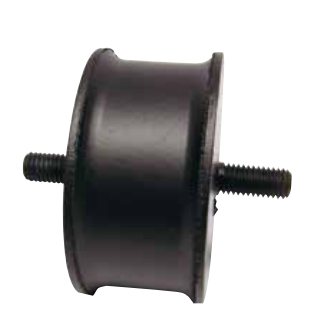

With a rated maximum load of 380 kg, PR1009575-60 is a 100 mm profiled bobbin anti-vibration mount built for the demanding middle ground where substantial structural support and effective vibration isolation must coexist. At 60 Shore A hardness, this rubber-to-metal bonded mount occupies the upper range of the profiled bobbin family, delivering the controlled deflection and load capacity that heavier machinery installations require. Constructed with rubber-to-metal bonding, the mount may be loaded in shear, compression, or a combination of both, giving engineers flexibility in how it is oriented within an assembly. The 60 Shore A rubber compound provides the balanced compliance characteristic of a medium grade: enough damping travel to absorb vibration and shock, yet sufficient stiffness to restrain heavier moving masses without excessive movement. Thread configuration is M16 × 45 on the male stud (d1) and M16 on the female thread (d2), accommodating many fastener approaches. Overall dimensions are 100 mm outer diameter, 95 mm secondary diameter, and 75 mm height. This mount is suited to applications where load demands push toward the higher end of a standard bobbin's capability: diesel engines and generator sets, industrial machinery and equipment, and exhaust mountings subject to combined vibration and shock inputs. It is equally applicable across construction and off-highway plant, power generation, agricultural equipment, marine installations, and automotive assemblies. By absorbing vibration at source, the mount extends machinery service life, reduces fatigue in surrounding structures, and improves operator comfort.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 60 |
|---|---|
| Diameter / thread d1 (mm) | 100 |
| Diameter / thread d2 (mm) | 95 |
| Overall height H (mm) | 75 |
| Type d1 | M16x45 |
| 1 d1 | M16x45 |
| 2 d2 | M16 |
| Type d2 | M16 |
| 3 d2 | M16 |
| Max load (kg) | 380 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10075MM44-60 | 10040FF16-45 | 7540MM37-70 | 7040FF10-70 | 7550MF37-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 75mm | 40mm | 40mm | 40mm | 50mm |
| Size | 100x75mm | 100x40mm | 75x40mm | 70x40mm | 75x50mm |
| Deflection | 6.7 | 3.2 | 3.4 | 3.4 | 4.4 |
| Diameter | 100mm | 100mm | 75mm | 70mm | 75mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Length Range | 51-100mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
| Shore Hardness | 60 | 45 | 70 | 70 | 70 |
| Thread | M16 | M16 | M12 | M10 | M12 |
| Show More | |||||
A. The PR1009575-60 is rated to a maximum load of 380 kg per mounting.
A. The mount has an outer diameter (D1) of 100 mm, a secondary diameter (D2) of 95 mm, and a height (H) of 75 mm. The male stud thread (d1) is M16 × 45 and the female thread (d2) is M16.
A. 60 Shore A is a medium rubber hardness. At this grade, the mount provides a balance between vibration isolation and structural support — softer grades offer greater deflection at lower loads, while harder grades carry higher loads with less movement. The 60 Shore A compound is well suited to applications where significant load capacity is required alongside effective damping.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in how it is oriented within an assembly.
A. Applications include diesel engines, generator sets, industrial machinery and equipment, exhaust mountings, and air-conditioning units. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. Shore grade variants of this 100 mm geometry include the 45 Shore A mount (PR1009575-45) and the 70 Shore A mount (PR1009575-70). Related profiled bobbin sizes include PR1009555, PR262222, PR403528, PR464025, and PR757040.
A. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
