Product Number: 3030MF20-70
Variations

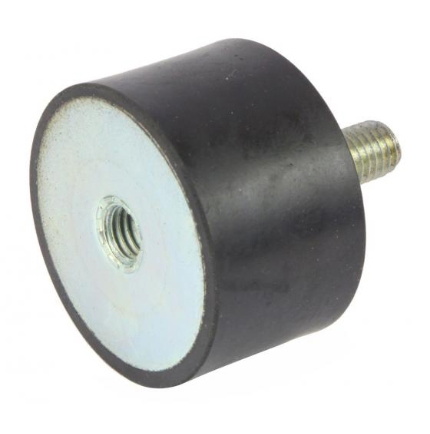

With a rated maximum load of 39.0 kg with a controlled deflection of just 2.6 mm, the 3030MF20-70 is a 30 x 30 mm male-female bobbin mount engineered for installations where firm restraint and minimal movement under load are the priority. With an M8 x 20 mm male stud and M8 female thread, it delivers the highest load capacity and least compliance within the 30 x 30 mm bobbin range, making it the appropriate 70 Shore A choice wherever heavier loads, shock inputs, or secure positional control are demanded. Constructed using rubber-to-metal bonded technology, this mount combines a steel inner and outer with a vulcanised rubber element rated at 70 Shore A. At this firmness, the rubber resists deformation under load, limiting deflection to 2.6 mm whilst maintaining the vibration attenuation and shock absorption that bobbin mounts provide. The mount is operable in shear, compression, or a combination of both, offering installation flexibility across a broad range of mounting orientations. Custom configurations in stainless steel and oil-resistant or high-temperature rubbers are available on request. The 3030MF20-70 is suited to diesel engines, generator sets, industrial machinery and equipment, and exhaust mountings where the mass of the supported component or the severity of shock and impact demands a firm-grade element. It also serves construction and off-highway, power generation, agricultural, marine, railway and mass transit, automotive, and military and defence applications. Where operator comfort and protection of surrounding structures are objectives, the rubber element reduces transmitted vibration and extends machinery service life.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 30 |
| Overall height H (mm) | 30 |
| Stud thread d1 | M8 |
| Stud length L (mm) | 20 |
| Diameter / thread d2 (mm) | M8 |
| Max load (kg) | 39 |
| Deflection (mm) | 2.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 3035FF08-70 | 2520MM18-70 | 2520MM20-70 | 3030MF13-70 | 3020MF20-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 35mm | 20mm | 20mm | ||
| Height | 30mm | 20mm | |||
| Size | 30x35mm | 25x20mm | 25x20mm | 30x20mm | |
| Deflection | 3.1 | 1.6 | 1.6 | 2.6 | 1.6 |
| Diameter | 30mm | 25mm | 25mm | ||
| Diameter Range | 26-50mm | 11-25mm | 11-25mm | ||
| Length Range | 26-50mm | 11-25mm | 11-25mm | ||
| Mount Dimension | 30mm | 30mm | |||
| Shore Hardness | 70 | 70 | 70 | ||
| Thread | M8 | M6 | M8 | M8 | M8 |
| Show More | |||||
A. The mount has an outer diameter and height of 30 x 30 mm, an M8 x 20 mm male stud (d1 x L), an M8 female thread (d2), a maximum load capacity of 39.0 kg, and a deflection of 2.6 mm.
A. It uses a male-female configuration with an M8 x 20 mm male stud on one end and an M8 female thread on the other, allowing it to be bolted through a mounting face on the female side and stud-fixed on the male side.
A. The 3030MF20-70 may be loaded in shear, compression, or a combination of both, providing flexibility across different mounting orientations and installation requirements.
A. The 70 Shore A grade is suited to applications requiring firm restraint and minimal deflection under load — such as diesel engines, generator sets, exhaust mountings, industrial machinery, and equipment subject to shock and impact forces.
A. Yes. The same geometry is available in 45 Shore A (SKU 3030MF20-45) for greater deflection and softer isolation, and 60 Shore A (SKU 3030MF20-60) for a mid-range balance between load capacity and compliance.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
