Product Number: 3020MF20-70
Variations

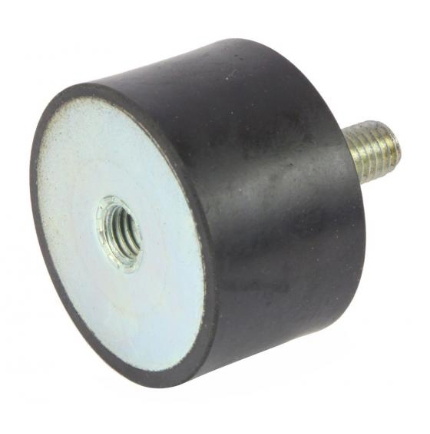

Rated to a maximum load of 53.0 kg with a controlled deflection of just 1.6 mm, the 3020MF20-70 is a 30 x 20 mm male-female rubber bobbin mount engineered for applications where structural firmness and minimal movement under load are the governing requirements. The M8 male stud and M8 female thread configuration makes installation and secure fixing straightforward in confined or compact assemblies. At 70 Shore A, this grade sits at the firm end of the hardness range: rubber-to-metal bonded construction holds components firmly in place even under sustained or repeated shock and impact forces, making it the appropriate choice when the mounted item must not migrate or shift in service. The firm hardness grade prioritises load retention over vibration attenuation. Where softer grades sacrifice rigidity in favour of greater deflection and isolation, the 70 Shore A mount carries heavy or vibrating items, diesel engines, generator sets, industrial machinery, and exhaust mountings. Whilst maintaining positional control. It is equally suited to air-conditioning units and equipment installations across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence sectors. Mounts of this type may be loaded in shear, compression, or a combination of both. The rubber-to-metal bond improves machinery service life, protects surrounding structures from transmitted vibration and shock, and contributes to operator comfort. Stainless steel fittings and oil-resistant or high-temperature rubber compounds are available on request for demanding environments.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Hardness (Shore A) | 70 |
|---|---|
| Body diameter D (mm) | 30 |
| Overall height H (mm) | 20 |
| Stud thread d1 | M8 |
| Stud length L (mm) | 20 |
| Diameter / thread d2 (mm) | M8 |
| Max load (kg) | 53 |
| Deflection (mm) | 1.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Male Bobbin Range, M8, Max Load 54Kg - 4040MM23-60
£12.60
£12.35
2% OFF
|
Anti-Vibration Mount - Male - Male Bobbin Range, M10, Max Load 54Kg - 4040MM25-60
£12.60
£12.35
2% OFF
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 4035FF08-60 | 4035FF10-60 | 4040MM23-60 | 4040MM25-60 | 4045MM25-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 35mm | 35mm | 45mm | ||
| Height | 40mm | 40mm | |||
| Size | 40x35mm | 40x35mm | 40x40mm | 40x40mm | 40x45mm |
| Deflection | 2.5 | 2.5 | 3.6 | 3.6 | 4.1 |
| Diameter | 40mm | 40mm | 40mm | ||
| Diameter Range | 26-50mm | 26-50mm | 26-50mm | ||
| Length Range | 26-50mm | 26-50mm | 26-50mm | ||
| Mount Dimension | 40mm | 40mm | |||
| Shore Hardness | 60 | 60 | 60 | ||
| Thread | M8 | M10 | M8 | M10 | M10 |
| Show More | |||||
A. The mount measures 30 mm diameter by 20 mm height. The male stud is M8 with a 20 mm stud length (d1 x L: M8 x 20) and the female thread is M8 (d2: M8).
A. The 3020MF20-70 has a maximum load rating of 53.0 kg and a deflection of 1.6 mm, reflecting the firm 70 Shore A grade's emphasis on load retention and minimal movement.
A. At 70 Shore A, this grade carries higher loads with less movement than softer grades. It is the appropriate choice when components must be held firmly in place under sustained load, shock, or repeated impact rather than maximising vibration isolation.
A. The mount may be loaded in shear, compression, or a combination of both, providing installation flexibility across a range of mounting orientations.
A. Typical applications include diesel engines, generator sets, industrial machinery and equipment, exhaust mountings, and air-conditioning units. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes — the 30 x 20 mm male-female family is also available in 45 Shore A (SKU: 3020MF20-45) and 60 Shore A (SKU: 3020MF20-60) for lighter loads or applications requiring greater deflection and isolation.
A. Stainless steel fittings and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
