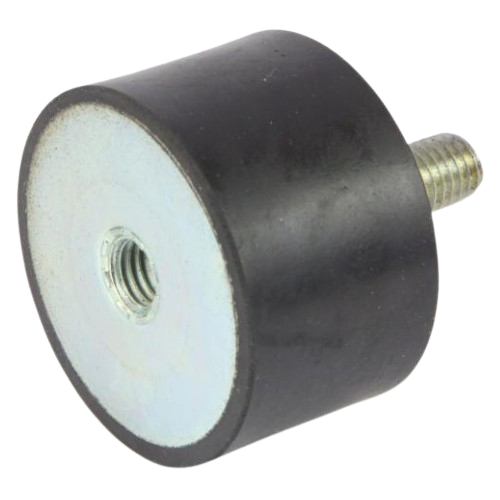

Product Number: 3020MF20-60
Carrying a maximum load of 39.0 kg with a controlled deflection of just 1.6 mm, the 3020MF20-60 sits at the lighter end of the 30x20mm male-female bobbin range, making it well suited to compact installations and sensitive equipment where a balance of vibration isolation and structural support is required. The M8 male stud (d1 x L: M8 x 20) and M8 female thread (d2: M8) allow straightforward in-line fitment across a wide variety of mounting configurations. As a 60 Shore A medium-hardness mount, this bobbin occupies the broad middle ground between soft isolation-focused grades and firm, high-load variants. The rubber-to-metal bonded construction enables loading in shear, compression, or a combination of both, giving engineers flexibility when routing or orientating the mount within a chassis or frame. The medium hardness delivers meaningful attenuation of vibration and shock without the greater deflection characteristic of softer grades, maintaining positional stability for instruments, light industrial machinery, and moderate-duty equipment. Applications drawn from the family source include air-conditioning units, exhaust mountings, instruments, and general industrial machinery and equipment. Sectors such as power generation, agriculture, automotive, marine, and construction and off-highway all feature installations where this load-and-deflection profile meets everyday service demands. Custom materials, including oil-resistant and high-temperature rubbers and stainless steel metalwork. Are available on request for specialist environments. This mount is available in alternative hardness grades for the 30x20mm male-female geometry: 45 Shore A (3020MF20-45) and 70 Shore A (3020MF20-70).
Male Female Bobbin Mounts referred to as Type B Bobbin or Type 2 Bobbins. They are a low-cost solution to reducing vibration & shock and are used in applications where a bolt fixing is required. They can be used in either Shear of Compression or a combination of both and can be produced with different thread variations. Many additional sizes are also offered, and the Bobbins can also be produced in Stainless Steel and Oil Resistant & High Temperature rubber compounds.
Applications include - General Purpose mounts, where a Male / Female connection is required. Suitable for a wide range of applications & industries which may include Diesel Engines, Generator Sets, Instrumentation, Industrial Machines & Equipment. Weight ranges from 1kg to 2000Kg per mount.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 30mm |
|---|---|
| Height (H) | 20mm |
| Thread size (V) | M8 |
| Bolt Length (I) | 20mm |
| Max Load (Kg) | 39 |
| Deflection (mm) | 1.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

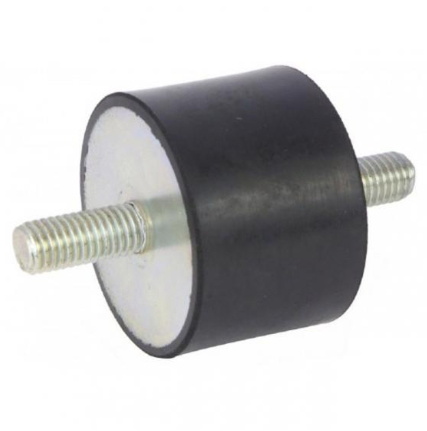

| PRODUCT NUMBER | 2520MM18-70 | 2520MM20-70 | 3030MF20-70 | 3035FF08-70 | 2520MF20-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 20mm | 20mm | 30mm | 35mm | 20mm |
| Size | 25x20mm | 25x20mm | 30x30mm | 30x35mm | 25x20mm |
| Deflection | 1.6 | 1.6 | 2.6 | 3.1 | 1.6 |
| Diameter | 25mm | 25mm | 30mm | 30mm | 25mm |
| Diameter Range | 11-25mm | 11-25mm | 26-50mm | 26-50mm | 11-25mm |
| Length Range | 11-25mm | 11-25mm | 26-50mm | 26-50mm | 11-25mm |
| Shore Hardness | 70 | 70 | 70 | 70 | 70 |
| Thread | M6 | M8 | M8 | M8 | M8 |
| Show More | |||||

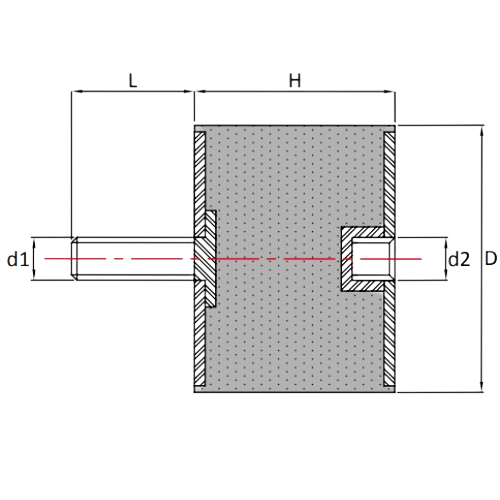

A. The mount measures 30 mm outer diameter by 20 mm height (D x H: 30 x 20). The male stud is M8 with a 20 mm length (d1 x L: M8 x 20) and the female thread is M8 (d2: M8).
A. The 3020MF20-60 has a maximum load rating of 39.0 kg and a deflection of 1.6 mm at that load.
A. At 60 Shore A, this is a medium-hardness grade. It provides a balance between vibration isolation and structural support — delivering meaningful attenuation of vibration and shock while maintaining greater positional stability than softer grades. It suits compact, moderate-duty, or sensitive installations within its 39.0 kg load capacity.
A. The rubber-to-metal bonded construction allows the mount to be loaded in shear, compression, or a combination of both, giving flexibility in mounting orientation.
A. Typical applications include air-conditioning units, exhaust mountings, instruments, and general industrial machinery and equipment. Industries served include power generation, agriculture, automotive, marine, construction and off-highway, and railway and mass transit.
A. Yes. The same geometry is available in 45 Shore A (SKU: 3020MF20-45) for greater isolation at lower loads, and 70 Shore A (SKU: 3020MF20-70) for higher-load, firmer-support applications.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
