Product Number: 3045MM23-60

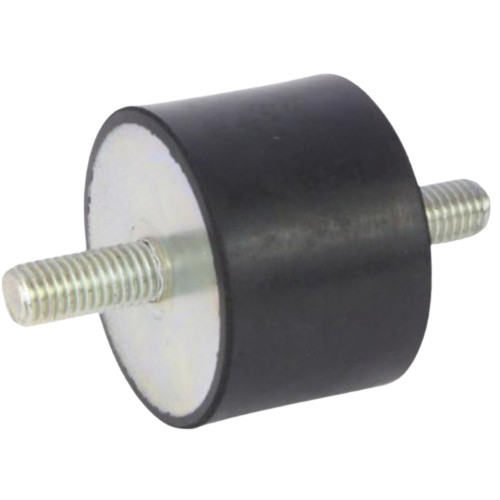

The 3045MM23-60 is a anti-vibration mount from AV Industrial Products, rated to 27 kg. Key dimensions: Mount Dimension (D) 30 mm; Height (H) 45 mm; Bolt Length (L) 23 mm.
Fit is by dimensions - match the figures in this listing's technical specifications against the part being replaced, or WhatsApp our team with your measurements before ordering. Bobbin mountings of this type are used across construction, agriculture, material handling and power generation, from combustion engines and generating sets to instruments and transit cases. Typical homes for this size include generating sets, compressors, instrument panels and general industrial machinery where a compact isolator is wanted.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Mount Dimension (D) | 30mm |
|---|---|
| Height (H) | 45mm |
| Thread Size (V) | M8 |
| Bolt Length (L) | 23mm |
| Max Load (Kg) | 27 |
| Deflection (mm) | 3.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Male Bobbin Range, M8, Max Load 28Kg - 3030MM20-60
£11.18
£10.96
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|

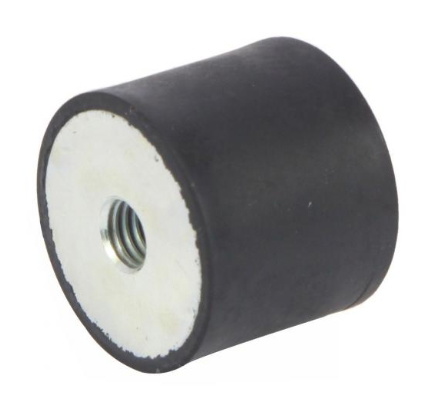

| PRODUCT NUMBER | 2522MM20-60 | 3040MM20-60 | 4035FF08-45 | 4035FF10-45 | 3030MM20-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 22mm | 40mm | 35mm | 35mm | |
| Height | 30mm | ||||
| Size | 25x22mm | 30x40mm | 40x35mm | 40x35mm | 30x30mm |
| Deflection | 1.8 | 3.6 | 2.5 | 2.5 | 2.6 |
| Diameter | 25mm | 30mm | 40mm | 40mm | |
| Diameter Range | 11-25mm | 26-50mm | 26-50mm | 26-50mm | |
| Length Range | 11-25mm | 26-50mm | 26-50mm | 26-50mm | |
| Mount Dimension | 30mm | ||||
| Shore Hardness | 60 | 60 | 45 | 45 | |
| Thread | M8 | M8 | M8 | M10 | M8 |
| Show More | |||||
A. Fit is dimensional. Match the dimensions in this listing's technical specifications (Mount Dimension (D) 30 mm; Height (H) 45 mm; Bolt Length (L) 23 mm) against the part you are replacing, or WhatsApp our team to confirm.
A. 27 kg maximum, as stated in this listing.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
