Product Number: 7535FF12-60

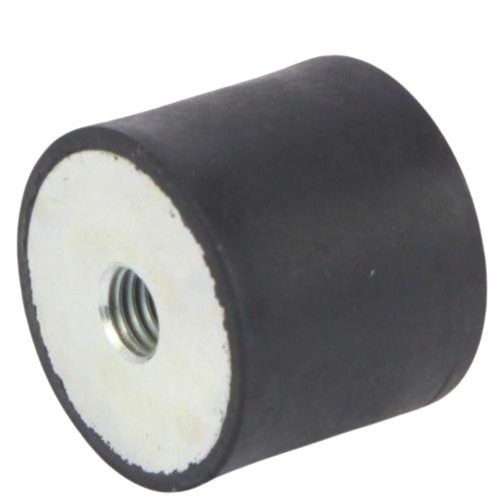

The 7535FF12-60 is a anti-vibration mount from AV Industrial Products, rated to 290 kg. Key dimensions: Outer Dimension (D) 75 mm; Height (H) 35 mm.
Fit is by dimensions - match the figures in this listing's technical specifications against the part being replaced, or WhatsApp our team with your measurements before ordering. Bobbin mountings of this type are used across construction, agriculture, material handling and power generation, from combustion engines and generating sets to instruments and transit cases. Typical homes for this size include generating sets, compressors, instrument panels and general industrial machinery where a compact isolator is wanted.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

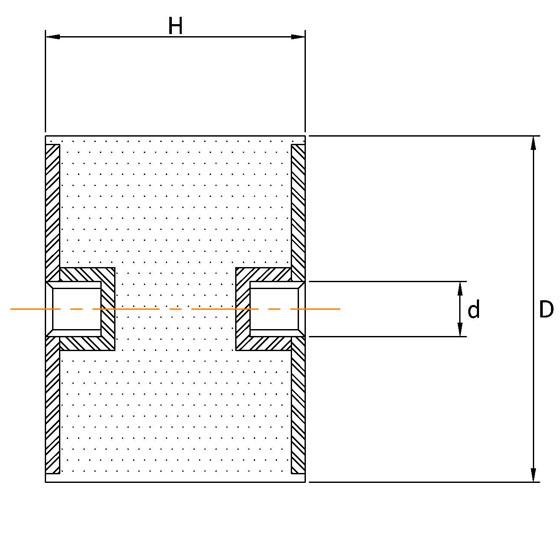

| Outer Dimension (D) | 75mm |
|---|---|
| Height (H) | 35mm |
| Thread Size (d) | M12 |
| Max Load (kg) | 290 |
| Deflection (mm) | 3.4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 10050MM44-45 | 7070FF10-70 | 7050MM25-70 | 7050MM37-70 | 7540MF37-60 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 50mm | 70mm | 50mm | 50mm | 40mm |
| Size | 100x50mm | 70x70mm | 70x50mm | 70x50mm | 75x40mm |
| Deflection | 4.2 | 6.4 | 4.4 | 4.4 | 3.4 |
| Diameter | 100mm | 70mm | 70mm | 70mm | 75mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Length Range | 26-50mm | 51-100mm | 26-50mm | 26-50mm | 26-50mm |
| Shore Hardness | 45 | 70 | 70 | 70 | 60 |
| Thread | M16 | M10 | M10 | M12 | M12 |
| Show More | |||||
A. Fit is dimensional. Match the dimensions in this listing's technical specifications (Outer Dimension (D) 75 mm; Height (H) 35 mm) against the part you are replacing, or WhatsApp our team to confirm.
A. 290 kg maximum, as stated in this listing.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
