Product Number: CFM346
Engineered for the heaviest-duty demands in the range, CFM346 is a 204 mm cast foot mount with an M16 thread stud, built to level and stabilise large industrial machinery while delivering effective vibration and noise attenuation. At the top end of the cast foot mount family by footprint dimension, this mount is the natural choice where significant load capacity and robust structural engagement are the priority. Constructed using rubber-to-metal bonded technology, CFM346 combines a rigid cast body with a compliant rubber element to absorb vibration in compression, shear, or a combination of both. The rubber element improves operator comfort, extends the service life of connected machinery, and protects surrounding structures and foundations from transmitted shock and vibration. Oil-resistant or high-temperature rubber compounds, and stainless steel metalwork, are available on request for demanding process environments. With principal dimensions of 204 mm (A) × 146 mm (B), a base height of 18 mm (C), thread designation M16 (D), and envelope dimensions of 230 mm (E) × 205 mm (F) × 165 mm (G) × 120 mm (H), CFM346 is well suited to generator sets, heavy industrial presses, conveyor systems, and large machine tools where a broad, stable footprint is required. It serves industries including power generation, construction and off-highway, marine, and railway and mass transit applications. This mount is part of a graded range of cast foot mountings. Smaller variants are available as CFM213 and CFM290 for lighter-load or more compact installations.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

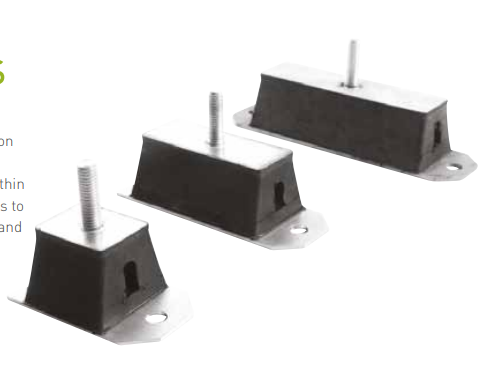

| PRODUCT NUMBER | CFM290 | SF100 | SF150 | SF200 | AVLF100 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Levelling Foot |
| Size | 132mm | 165x100mm | 150x185mm | 45.7mm | 38.5mm |
| Size Range | 101-200mm | 26-50mm | |||
| Thread | M16 | M12 | M12 | M12 | M16 |
A. CFM346 has the following specification: A (footprint length) 204 mm, B 146 mm, C (base height) 18 mm, D (thread) M16, E 230 mm, F 205 mm, G 165 mm, H 120 mm.
A. CFM346 is suited to machine tools, lathes, presses, heavy industrial equipment, conveyors, food processing machinery, pharmaceutical equipment, and generator sets, as well as applications in power generation, marine, construction, railway and mass transit, and agricultural settings.
A. The mount may be loaded in shear, compression, or a combination of both, offering flexibility in how it is installed beneath a machine.
A. Rubber-to-metal bonded construction absorbs vibration and reduces noise transmission, which improves operator comfort, extends machinery service life, and protects surrounding structures and foundations from shock and vibration.
A. Yes — oil-resistant and high-temperature rubber compounds, stainless steel metalwork, and additional or custom sizes are available on request.
A. CFM346 is the largest mount in the range by footprint dimension and is the highest-load variant. Smaller alternatives are CFM213 and CFM290, which are suited to lighter-load or more compact machinery installations.
