Product Number: HARFSV7
Variations

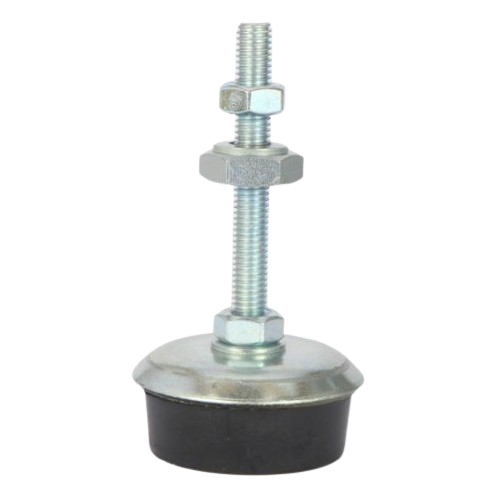

Carrying loads between 2,100 kg and 3,750 kg, the HARFSV7 is an upper-range levelling foot engineered for the heaviest fixed-plant and high-shock industrial installations where structural stability and vibration attenuation must be maintained simultaneously. At 205 mm across dimension A with an M24 threaded stem, dimension B of 75 mm, and dimension D of 138 mm, this mount occupies the demanding end of the levelling foot range and is sized accordingly for robust baseplate engagement. Constructed using rubber-to-metal bonded technology, the foot combines a rigid metal body with a rubber element capable of absorbing vibration and reducing structure-borne noise under sustained compressive and shear loading. The rubber element may be loaded in compression, shear, or a combination of both, making the mount adaptable to varied machine-installation conditions. Oil-resistant and high-temperature rubber compounds, as well as stainless steel metalwork, are available on request for aggressive operating environments. The HARFSV7 is particularly suited to generator sets, heavy presses, conveyors, and large industrial equipment operating in sectors such as power generation, marine, railway and mass transit, and military and defence applications. By isolating vibration at the machine base, it protects surrounding structures, extends machinery service life, and contributes to improved operator comfort over extended operational periods. This foot is part of a broad levelling foot programme. Related variants include AVLF100, AVLF120, AVLF50, AVLF80, HARFSV0, HARFSV00, HARFSV000, and HARFSV1, covering a wide spectrum of load capacities and thread sizes to match the full range of machine installation requirements.
Anti-Vibration Levelling Feet are simple, low-cost products suitable for most types of machinery. They allow machinery to be levelled while providing a degree of noise and vibration reduction. Other sizes, stainless steel metals, and oil-resistant/high-temperature rubbers are available on request. Also known as Machine Feet.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

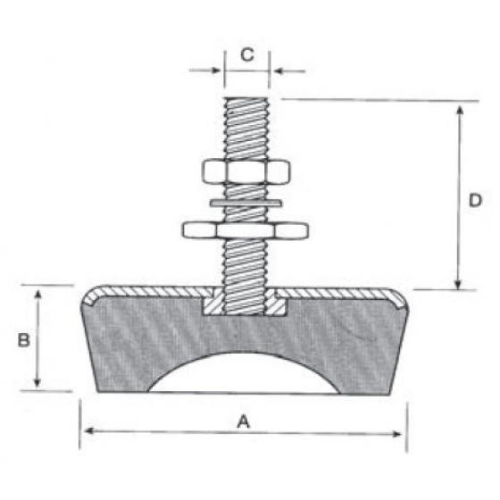

| Base Width (A) | 210mm |
|---|---|
| Rubber Body Height (B) | 75mm |
| Thread Size (C) | M24 |
| Overall Height (D) | 138mm |
| Minimum Load (Kg) | 2100 |
| Maximum Load (Kg) | 3750 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AVLF100 | AVLF120 | AVLF50 | AVLF80 | HARFSV0 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 38.5mm | 42.5mm | 29mm | 35mm | 70mm |
| Overall Height | 89mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Thread | M16 | M16 | M10 | M10 | M12 |
| Minimum Load | 90 | ||||
A. The HARFSV7 carries a minimum load of 2,100 kg and a maximum load of 3,750 kg. Its principal dimensions are: A = 205 mm, B = 75 mm, C = M24 (thread), D = 138 mm.
A. This levelling foot is suited to heavy industrial equipment including generator sets, presses, and conveyors, and serves industries such as power generation, marine, railway and mass transit, military and defence, construction and off-highway, and agriculture.
A. The bonded rubber-to-metal construction allows the foot to carry high compressive loads while simultaneously absorbing vibration and reducing structure-borne noise. The rubber element may be loaded in compression, shear, or a combination, protecting surrounding structures and improving machinery service life.
A. Yes. Oil-resistant and high-temperature rubber compounds, stainless steel metalwork, and additional or custom sizes are available on request.
A. Related variants include AVLF100, AVLF120, AVLF50, AVLF80, HARFSV0, HARFSV00, HARFSV000, and HARFSV1, covering a broad spectrum of load capacities and thread sizes.
