Product Number: HARFSV6
Variations

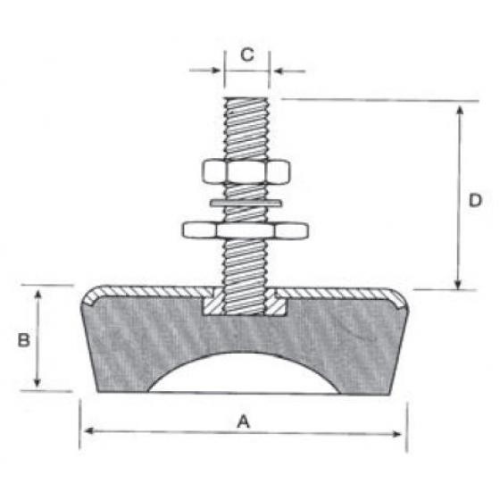

Rated for punishing loads between 1,500 kg and 2,500 kg, the HARFSV6 levelling foot is built for heavy industrial plant and capital equipment that demands secure, adjustable support at the upper end of the range. The foot measures 180 mm across its base (dimension A) with a 70 mm body depth (B), an M24 threaded stem (C), and a 138 mm overall height dimension (D), giving engineers precise geometry for integration beneath demanding machinery. Rubber-to-metal bonded construction provides simultaneous vibration attenuation and noise reduction, preserving surrounding structures and improving operator comfort where sustained dynamic loading is the working norm. The anti-vibration element works effectively in compression, shear, or a combination of both, making the foot adaptable to varied installation orientations without sacrificing performance under shock or sustained load. The HARFSV6 is well suited to generator sets, heavy presses, industrial conveyors, and large-format machine tools where high static and dynamic loads are present throughout the duty cycle. Its levelling function allows the host machine to be set precisely on imperfect floors, reducing stress concentrations that would otherwise shorten machinery lifespan. Material upgrades including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for demanding process environments such as food processing and pharmaceutical plant. This foot is part of a levelling feet family spanning many load capacities and base diameters. Related variants include AVLF50, AVLF80, AVLF100, AVLF120, HARFSV0, HARFSV00, HARFSV000, and HARFSV1, covering lighter and mid-range duties where smaller footprints or lower load ratings are required.
Anti-Vibration Levelling Feet are simple, low-cost products suitable for most types of machinery. They allow machinery to be levelled while providing a degree of noise and vibration reduction. Other sizes, stainless steel metals, and oil-resistant/high-temperature rubbers are available on request. Also known as Machine Feet.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Width (A) | 180mm |
|---|---|
| Rubber Body Height (B) | 70mm |
| Thread Size (C) | M24 |
| Overall Height (D) | 138mm |
| Minimum Load (Kg) | 1500 |
| Maximum Load (Kg) | 2500 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AVLF100 | AVLF120 | AVLF50 | AVLF80 | HARFSV0 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 38.5mm | 42.5mm | 29mm | 35mm | 70mm |
| Overall Height | 89mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Thread | M16 | M16 | M10 | M10 | M12 |
| Minimum Load | 90 | ||||
A. The HARFSV6 is rated for a minimum load of 1,500 kg and a maximum load of 2,500 kg, placing it at the upper end of the levelling feet range for heavy industrial applications.
A. Dimension A (base diameter) is 180 mm, B (body depth) is 70 mm, the threaded stem C is M24, and the overall height dimension D is 138 mm.
A. The HARFSV6 is suited to heavy industrial equipment including generator sets, large presses, industrial conveyors, machine tools, and similar high-load plant where both precise levelling and vibration attenuation are required.
A. The rubber-to-metal bonded element attenuates vibration and reduces noise transmission to surrounding structures, and the foot can be loaded in compression, shear, or a combination of both to suit varied mounting orientations.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes, making the foot suitable for food processing, pharmaceutical, and other demanding environments.
A. Related variants covering lighter and mid-range load capacities include AVLF50, AVLF80, AVLF100, AVLF120, HARFSV0, HARFSV00, HARFSV000, and HARFSV1.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
