Product Number: HARFSV3
Variations
Sized at 120 mm diameter with an M16 stem and a load range of 450 to 900 kg, the HARFSV3 levelling foot is engineered for installations where compact footprint and controlled deflection are priorities at mid-range loads. Its rubber-to-metal bonded construction combines structural reliability with effective vibration and noise attenuation, making it well suited to lighter-duty industrial settings where protecting sensitive adjacent equipment or improving operator comfort is as important as machine stability. The HARFSV3 features a 50 mm base height (dimension B) and an overall dimension D of 116 mm, providing a low-profile, rigid mounting platform. The rubber element is manufactured to resist the compressive and shear forces encountered during normal machine operation, while the bonded metal components ensure consistent load transfer without slippage. For specialist environments, oil-resistant and high-temperature rubber compounds, as well as stainless steel metal parts, are available on request. This levelling foot is appropriate across a broad range of applications including food processing equipment, pharmaceutical machinery, conveyors, and generator sets, installations where vibration isolation must be maintained without imposing heavy structural loads on floors or frames. The ability to level machinery precisely while absorbing vibration improves machinery lifespan and protects surrounding structures. Industries served include power generation, agriculture, marine, automotive, and railway and mass transit. The HARFSV3 forms part of a wider range of anti-vibration levelling feet.
Anti-Vibration Levelling Feet are simple, low-cost products suitable for most types of machinery. They allow machinery to be levelled while providing a degree of noise and vibration reduction. Other sizes, stainless steel metals, and oil-resistant/high-temperature rubbers are available on request. Also known as Machine Feet.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

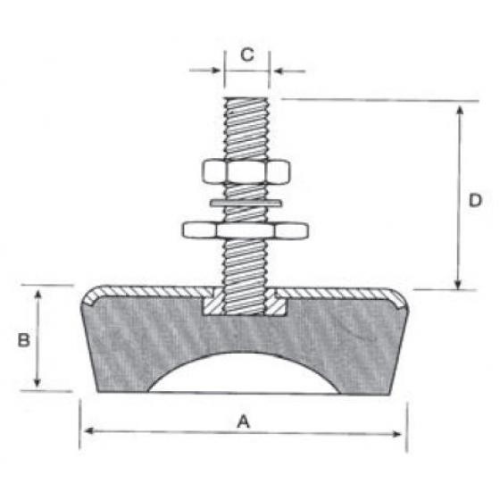

| Base Width (A) | 120mm |
|---|---|
| Rubber Body Height (B) | 50mm |
| Thread Size (C) | M16 |
| Overall Height (D) | 116mm |
| Minimum Load (Kg) | 450 |
| Maximum Load (Kg) | 900 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AVLF100 | AVLF120 | AVLF50 | AVLF80 | HARFSV0 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 38.5mm | 42.5mm | 29mm | 35mm | 70mm |
| Overall Height | 89mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Thread | M16 | M16 | M10 | M10 | M12 |
| Minimum Load | 90 | ||||
A. The HARFSV3 has a base diameter (A) of 120 mm, a base height (B) of 50 mm, an M16 stem thread (C), and an overall dimension D of 116 mm. The minimum load rating is 450 kg and the maximum load rating is 900 kg.
A. The HARFSV3 is suited to a wide range of industrial machinery, including conveyors, food processing equipment, pharmaceutical machinery, and generator sets. It is also applicable in industries such as agriculture, marine, automotive, railway and mass transit, and power generation.
A. The HARFSV3 uses rubber-to-metal bonded construction, combining a rubber vibration-absorbing element with bonded metal components to ensure consistent load transfer, structural integrity, and effective vibration and noise reduction.
A. Yes. Oil-resistant and high-temperature rubber compounds, as well as stainless steel metal parts and additional or custom sizes, are available on request for specialist or demanding environments.
A. Anti-vibration levelling feet allow machinery to be levelled accurately while reducing transmitted vibration and noise. This improves machinery lifespan, protects surrounding structures, and improves operator comfort.
A. Yes. Related levelling feet are available under the following references: AVLF100, AVLF120, AVLF50, AVLF80, HARFSV0, HARFSV00, HARFSV000, and HARFSV1, covering different capacities and configurations.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
