Product Number: HARFSV4
Variations
Serving the mid-range of the levelling foot series, HARFSV4 is a rubber-to-metal bonded machine foot rated for loads between 700 kg and 1,200 kg, built to level and stabilise industrial machinery while attenuating vibration and airborne noise at the floor interface. With an overall diameter of 140 mm, a rubber element height of 50 mm, an M16 thread, and a mounting height of 116 mm, this foot suits mainstream general-machinery installations where moderate-to-substantial loads must be managed without specialist isolation hardware. The rubber-to-metal bonded construction delivers reliable load transfer across both compression and shear directions, making it effective wherever machine forces are not purely vertical. Vibration absorbed at the foot reduces transmission into workshop floors and surrounding structures, improving operator comfort and extending the working life of machinery and adjacent plant. The 140 mm base pad distributes the static load across a generous footprint, reducing point loading on concrete or fabricated steelwork. Typical applications include conveyors, food-processing lines, generator sets, presses, and heavy industrial equipment, areas where a stable, vibration-attenuated footing supports both throughput and compliance with site noise requirements. The foot is suited to industries including power generation, marine, railway and mass transit, agriculture, and automotive production. Oil-resistant and high-temperature rubber compounds, as well as stainless steel hardware, are available on request for arduous or chemically aggressive environments. This foot is one model within a wider levelling foot range.
Anti-Vibration Levelling Feet are simple, low-cost products suitable for most types of machinery. They allow machinery to be levelled while providing a degree of noise and vibration reduction. Other sizes, stainless steel metals, and oil-resistant/high-temperature rubbers are available on request. Also known as Machine Feet.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

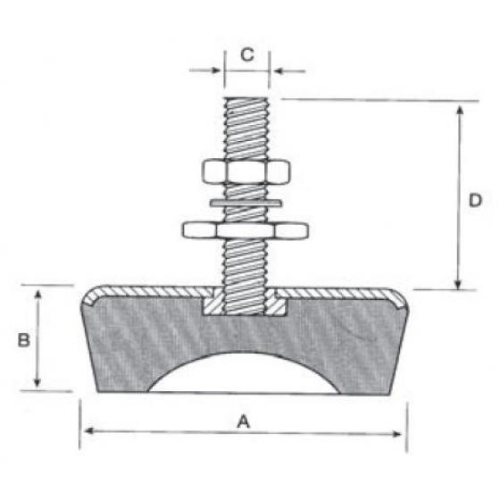

| Base Width (A) | 140mm |
|---|---|
| Rubber Body Height (B) | 55mm |
| Thread Size (C) | M16 |
| Overall Height (D) | 116mm |
| Minimum Load (Kg) | 700 |
| Maximum Load (Kg) | 1200 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AVLF100 | AVLF120 | AVLF50 | AVLF80 | HARFSV0 |
| Type | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot | Levelling Foot |
| Size | 38.5mm | 42.5mm | 29mm | 35mm | 70mm |
| Overall Height | 89mm | ||||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | |
| Thread | M16 | M16 | M10 | M10 | M12 |
| Minimum Load | 90 | ||||
A. The HARFSV4 is rated for a minimum load of 700 kg and a maximum load of 1,200 kg, making it suited to mainstream general-machinery installations carrying moderate-to-substantial static and dynamic loads.
A. The foot has an overall diameter (A) of 140 mm, a rubber element height (B) of 50 mm, an M16 thread (C), and a mounting height (D) of 116 mm.
A. The foot is designed for use with conveyors, food-processing equipment, generator sets, presses, and heavy industrial plant, and is suited to industries including power generation, marine, railway and mass transit, agriculture, and automotive production.
A. The bonded construction transfers load in both compression and shear, absorbs vibration before it reaches the floor, reduces noise transmission into surrounding structures, and contributes to improved operator comfort and extended machinery service life.
A. Yes — oil-resistant and high-temperature rubber compounds, as well as stainless steel hardware, are available on request for installations where standard materials would be unsuitable.
A. Yes — the range includes AVLF50, AVLF80, AVLF100, AVLF120, HARFSV0, HARFSV00, HARFSV000, and HARFSV1, each covering different load capacities and footprint dimensions.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
