Product Number: CDM80-55-55
Variations

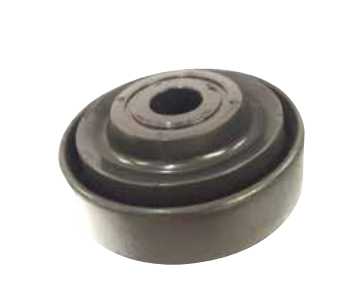

Compact in footprint yet capable in application, the CDM80-55-55 is an 80 mm diameter cone (cab) mount rated to a maximum load of 140 kg at 55 Shore A medium hardness, a specification that places it squarely at the balance point between deflection and support. With an M16 bolt size and a maximum bolt torque of 240 N·m, this mount is suited to lighter, space-conscious installations where both vibration isolation and positional control are required without the weight capacity of the larger formats in the range. The rubber-to-metal bonded construction delivers the high horizontal stiffness relative to vertical stiffness that characterises the cone mount geometry. At 55 Shore A, the medium grade occupies the practical middle ground of the hardness range: softer grades offer greater deflection and better isolation at lower loads, harder grades carry higher loads with less movement, and this medium grade balances both characteristics to serve a broad spread of mounting duties. Mounts may be loaded in shear, compression, or a combination of both, giving installation flexibility on varied equipment. At 80 mm overall diameter (D1: 37.8 mm, H: 41.5 mm, H1: 32 mm, C: 37.9–38.2 mm, E: 19/20 mm, d: 16.2 mm), the CDM80-55-55 is particularly well suited to operator cabs, compact off-highway vehicles, and sensitive machine sub-assemblies in construction, earth-moving, agricultural, power generation, marine, railway and mass transit, automotive, and military and defence environments. The failsafe design makes it appropriate for mobile applications where secondary retention is a consideration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CB1650-45 | CB1650-60 | CB1650/1-45 | CB1650/1-60 | CDM110-45-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 105mm | 105mm | 105mm | 105mm | 110mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M20 | ||||
A. The CDM80-55-55 is rated to a maximum load of 140 kg. This figure applies to the 80 mm, 55 Shore A medium-grade variant and should be verified against actual installation loads before specifying.
A. The CDM80-55-55 uses an M16 bolt. The maximum recommended bolt torque is 240 N·m.
A. The principal dimensions are: overall diameter D 80 mm, inner diameter d 16.2 mm, flange diameter D1 37.8 mm, overall height H 41.5 mm, H1 32 mm, C 37.9–38.2 mm, and E 19/20 mm.
A. At 55 Shore A, the medium grade balances vibration isolation against load-carrying capacity. Softer grades offer greater deflection and better isolation at lower loads; harder grades carry higher loads with less movement. The 55 Shore A grade serves the broad middle ground, making it suitable for applications where both characteristics are needed.
A. The CDM80-55-55 may be loaded in shear, compression, or a combination of both, providing installation flexibility across a wide range of equipment configurations.
A. The cone mount family is designed for construction, earth-moving and agricultural machinery, operator cabs, and off-highway vehicles. The product also serves power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The cone mount range includes 66 mm (CDM66-45, CDM66-55, CDM66-65), 110 mm (CDM110-45, CDM110-55, CDM110-65), and 130 mm (CDM130-45, CDM130-55, CDM130-65) variants, each available in 45, 55 and 65 Shore A hardness grades.
