Product Number: CDM80-45-45
Variations
Where vibration isolation takes priority over restraint, the CDM80-45-45 is engineered to absorb and attenuate movement rather than resist it. This 80 mm cone (cab) mount carries an 45 Shore A rubber grade, the softest available in the CDM family. And is designed for lighter, compact or sensitive installations where maximum deflection under load is a functional advantage. With a maximum rated load of 90 kg and an M16 fixing bolt torque limit of 240 N·m, the mount is matched to the lower end of the CDM load range, making it suited to applications where equipment weight is moderate and freedom of movement in the vertical axis is required to achieve effective isolation. The CDM geometry is characterised by high horizontal stiffness relative to vertical stiffness, a proportional relationship that controls cab and engine movement without sacrificing isolation performance. Rubber-to-metal bonded construction ensures the elastomer and metalwork act as a single assembly, delivering consistent load distribution and long service life. The failsafe design makes the mount well suited to mobile applications where secondary containment is a requirement. Principal dimensions are: outer diameter D 80 mm, base diameter d 16.2 mm, flange diameter D1 37.8 mm, total height H 41.5 mm, rubber height H1 32 mm, and centre-to-centre dimension C 37.9–38.2 mm.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

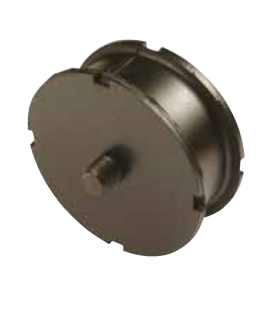

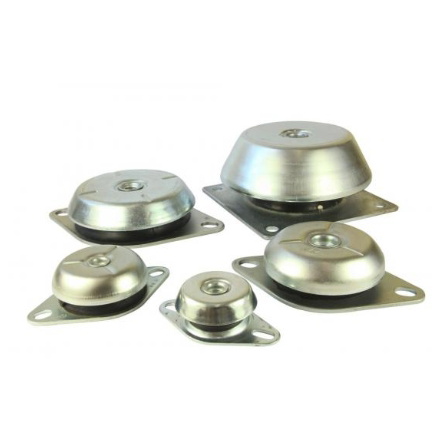

| PRODUCT NUMBER | CTM12548 | CTM11548 | CTM10850 | BM10555MM36 | BM10555MM17 | BM10555MF17 |
A. The CDM80-45-45 has a maximum load rating of 90 kg. This reflects the softer 45 Shore A rubber grade, which is optimised for lighter installations where deflection and isolation performance are prioritised over high load capacity.
A. The mount uses an M16 bolt. The maximum bolt torque is 240 N·m. Exceeding this torque limit may damage the rubber-to-metal bond or the mount structure.
A. The principal dimensions are: outer diameter (D) 80 mm, base diameter (d) 16.2 mm, flange diameter (D1) 37.8 mm, total height (H) 41.5 mm, rubber height (H1) 32 mm, and centre-to-centre dimension (C) 37.9–38.2 mm. The E dimension is 19/20.
A. The 45 Shore A is the softest grade in the CDM range. Softer grades provide greater deflection under load and better vibration isolation, particularly at lower frequencies and lighter loads. It is the appropriate choice where isolating the operator or surrounding structure from vibration matters more than restricting movement.
A. This mount is designed for construction, earth-moving and agricultural machinery, operator cabs, and off-highway vehicles. It is also used across power generation, marine, railway and mass transit, automotive, and military and defence industries where vibration control of lighter or sensitive equipment is required.
A. Yes. The cone (cab) mount design incorporates a failsafe feature that makes it suitable for mobile applications where secondary containment is a standard requirement.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. The CDM range includes 66 mm variants (CDM66-45, CDM66-55), 110 mm variants (CDM110-45, CDM110-55, CDM110-65), and 130 mm variants (CDM130-45, CDM130-55, CDM130-65), covering a range of load capacities, stiffness grades and dimensional requirements.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
