Product Number: SFCM160-60
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

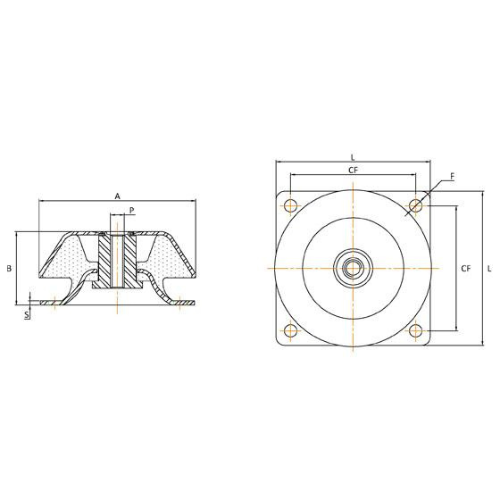

| Top Outer Dimension (A) | 162mm |
|---|---|
| Overall Height (B) | 59mm |
| Thread Size (P) | M20 |
| Fixing Hole Dimension (F) | 14.5mm |
| Center Distance (CF) | 140mm |
| Base Width (L) | 170mm |
| Base Plate Thickness (S) | 4mm |
| Max Load (kg) | 1400 |
| Deflection (mm) | 7 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 1250Kg - SFCM180-45
£244.92
£240.12
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1085016-70 | CTM1444816-3 | SFCM220HD-45 | SFCM180-45 | CTM1445316-9 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 3mm | 8mm | 18 | 8 | 10mm |
| Overall Height | 105mm | 66mm | |||
| Thread | M16 | M16 | M24 | M20 | M16 |
A. The SFCM160 has a flange dimension (A) of 162 mm, B of 59 mm, thread size M20 (P), F 14.5, CF 140, L 170, and 4 fixing holes (S).
A. The mount features an integral overload stop that controls movement of mounted equipment during transit, plus a failsafe arrangement specifically designed to control shock loads and prevent catastrophic failure.
A. The rubber element is used in shear-compression to deliver vibration reduction of up to 95% across all axes.
A. It is suitable for mobile and static applications including pumps and compressors, industrial and commercial vehicles, generating sets, diesel engines, construction and plant equipment, and marine engines.
A. A metal top cap protects the rubber element against oil, fuel and contamination, and protective plating on the metalwork resists corrosion.
A. The mount may be loaded in shear, compression or a combination of both, supporting a wide range of mounting configurations.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers, plus additional and custom sizes, are available on request.
A. The range also includes SFCM150, SFCM150HD, SFCM180, SFCM180HD, SFCM220 and SFCM220HD, covering a broad spread of load capacities and flange sizes.
