Product Number: CTM14453

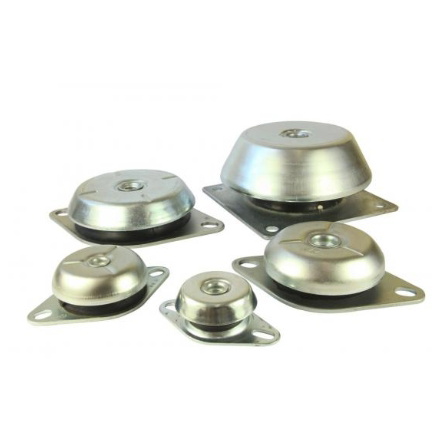

Engineered for the most demanding load and shock requirements in the range, the CTM14453 is a 155mm captive transit mount with M16 thread, carrying rated loads in the CF band of 176–188 and offering a deflection figure (S) of 4.0mm. Where heavy plant, large generating sets, or industrial power units place sustained high loads on their mounting points, this largest-in-range captive design delivers the structural integrity and vibration attenuation the application demands. The captive transit mount design centres on an integral overload stop that controls equipment movement under transit conditions, complemented by a failsafe arrangement that governs shock loads and prevents catastrophic structural failure. Rubber is employed in shear-compression for optimum performance, achieving vibration reduction of up to 95% across all axes. A metal top cap shields the rubber element against oil, fuel, and general contamination, while protective plating on metal components resists corrosion in service. The rubber-to-metal bonded construction improves machinery lifespan, protects surrounding structures, and improves operator comfort. Dimensions for this mount are: A 155mm, B 53mm, thread P M16, fixing F×M 14×11, clamping face CF 176–188, G 120mm, L 216mm, and static deflection S 4.0mm. These figures support sizing into high-load installations on construction and plant equipment, diesel and marine engines, pumps, compressors, and industrial or commercial vehicles. The mount is suitable for both mobile and static applications, and mounts may be loaded in shear, compression, or a combination of both.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 155 |
|---|---|
| Width / dimension B (mm) | 53 |
| Pitch / dimension P (mm) | M16 |
| Fixing hole F (mm) | 14 |
| Thread / stud size M | 11 |
| Across flats / clearance CF (mm) | 176-188 |
| Fixing hole spacing G (mm) | 120 |
| Length L (mm) | 216 |
| Plate / metal thickness S (mm) | 4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM-R | CTM-R2 | CTM-R3 | CTM10638 | CTM1063812-45 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Size | 64mm | 106mm | |||
| Deflection | 3.5mm | 3.5mm | 4mm | ||
| Size Range | 51-100mm | 101-200mm | |||
| Thread | M12 | M12 | M12 | M12 | M12 |
A. The CTM14453 has the following dimensions: A 155mm, B 53mm, thread P M16, fixing F×M 14×11, clamping face CF 176–188, G 120mm, L 216mm, and static deflection S 4.0mm.
A. The clamping face (CF) for the CTM14453 is rated at 176–188, making it suitable for high-load mounting applications within the captive transit mount family.
A. The mount incorporates an integral overload stop that controls movement of mounted equipment during transit, and a failsafe arrangement that governs shock loads to prevent catastrophic structural failure.
A. The rubber element is used in shear-compression and achieves vibration reduction of up to 95% across all axes.
A. This mount is suitable for high-load installations including construction and plant equipment, diesel engines, marine engines, pumps, compressors, and industrial or commercial vehicles, in both mobile and static applications.
A. Yes — the captive transit mount family covers load ratings from approximately 20kg to 5000kg across various sizes and shore hardnesses. Sibling variants include CTM-R, CTM10638, CTM10642, CTM10850, CTM11548, CTM12142, CTM12548, and CTM14448.
A. Yes — stainless steel metals, oil-resistant rubbers, high-temperature rubbers, and additional custom sizes are available on request.
A. The metal top cap protects the rubber element against oil, fuel, and contamination, while protective plating on the metal components resists corrosion during service life.
