Product Number: CTM12142

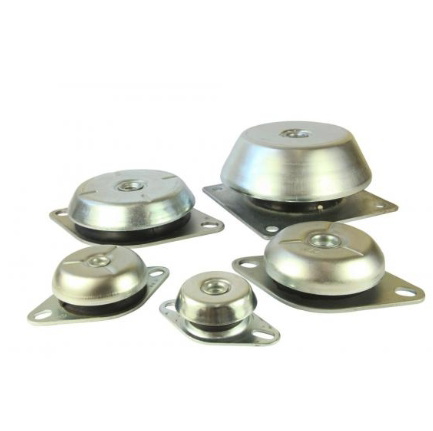

Carrying loads across the 150–163 kg rated capacity, the CTM12142 is a 121 mm captive transit mount designed to isolate vibration and absorb shock loads in demanding mobile and static installations. With a thread configuration of M12 / M16, a body length of 190 mm, and a centre fixing of 13.5 mm diameter, this upper-range mount is engineered for applications where higher load-bearing capability combined with controlled movement is the priority. The mount's rubber element operates in shear-compression for optimum performance, delivering vibration reduction of up to 95% across all axes. An integral overload stop governs equipment movement during transit, whilst the failsafe arrangement manages shock loads and prevents catastrophic failure. The rubber-to-metal bonded construction is complemented by a metal top cap that shields the assembly from oil, fuel and contamination, and protective plating resists corrosion throughout the service life of the mount. At 121 mm across dimension A, this CTM12142 is well suited to generating sets, diesel engines, marine engines, pumps and compressors, and construction and plant equipment operating under sustained or variable load conditions. The mount is equally applicable across industrial and commercial vehicles and power generation plant, where protecting surrounding structures and improving operator comfort are as important as machinery lifespan. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for specialist environments. The captive transit mount range is stocked across a wide span of body sizes and thread configurations.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 121 |
|---|---|
| Width / dimension B (mm) | 42 |
| Pitch / dimension P (mm) | M12 / M16 |
| Fixing hole F (mm) / Thread / stud size M | 13.5ø |
| Across flats / clearance CF (mm) | 150 - 163 |
| Fixing hole spacing G (mm) | 92 |
| Length L (mm) | 190 |
| Plate / metal thickness S (mm) | 4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM-R | CTM-R2 | CTM-R3 | CTM10638 | CTM1063812-45 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Size | 64mm | 106mm | |||
| Deflection | 3.5mm | 3.5mm | 4mm | ||
| Size Range | 51-100mm | 101-200mm | |||
| Thread | M12 | M12 | M12 | M12 | M12 |
A. The CTM12142 has a rated capacity (CF) of 150 to 163 kg, placing it in the upper range of the captive transit mount family.
A. The mount uses a dual thread configuration of M12 and M16 (spec P: M12 / M16), with a centre fixing diameter of 13.5 mm.
A. Dimension A (body diameter) is 121 mm, dimension B is 42 mm, overall length L is 190 mm, G is 92 mm, and static deflection S is 4.0 mm.
A. An integral overload stop controls the movement of mounted equipment during transit, and a failsafe arrangement manages shock loads to prevent catastrophic failure.
A. The rubber element operates in shear-compression and delivers vibration reduction of up to 95% across all axes.
A. The mount is suitable for generating sets, diesel engines, marine engines, pumps, compressors, construction and plant equipment, and industrial and commercial vehicles in both mobile and static installations.
A. Yes — the mount features a metal top cap to protect against oil, fuel and contamination, and protective plating to resist corrosion.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
